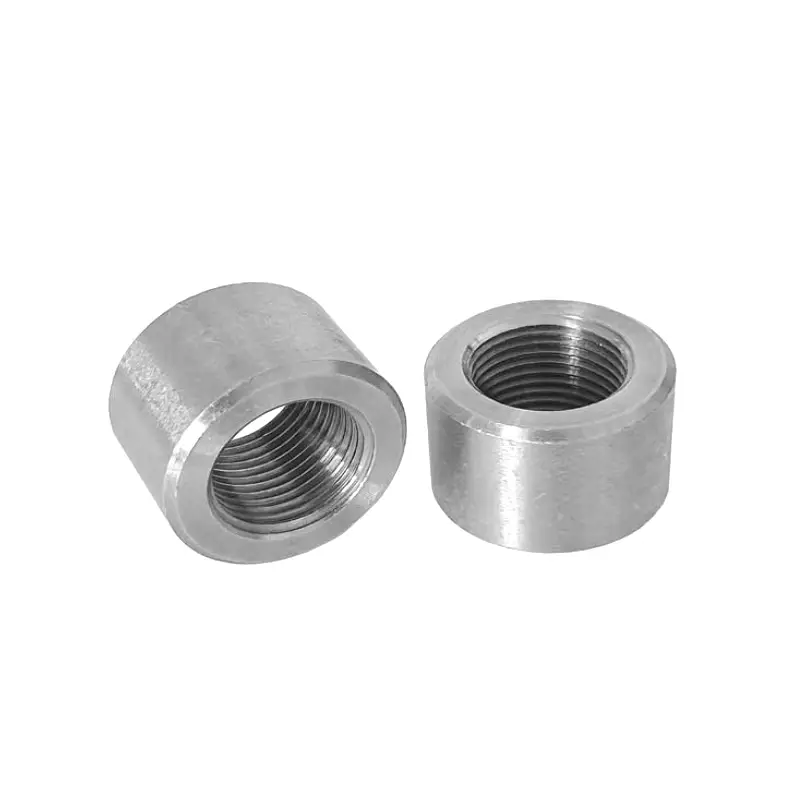

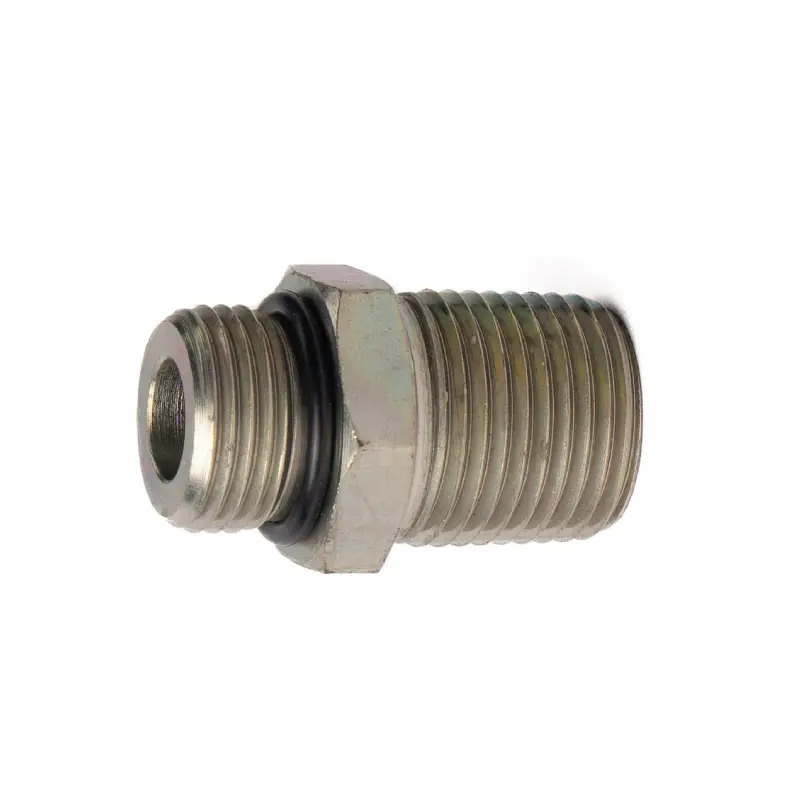

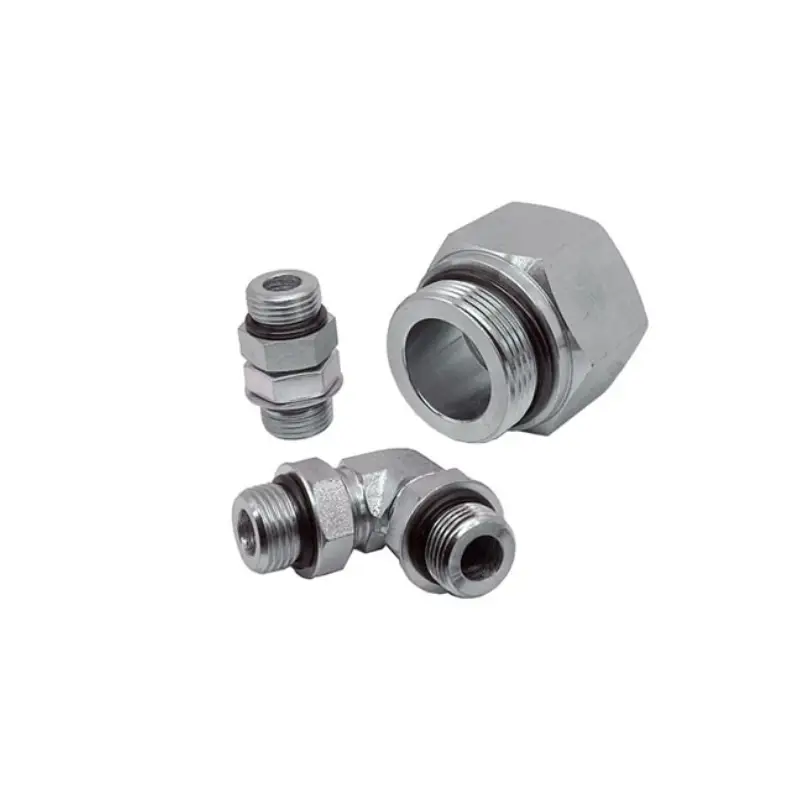

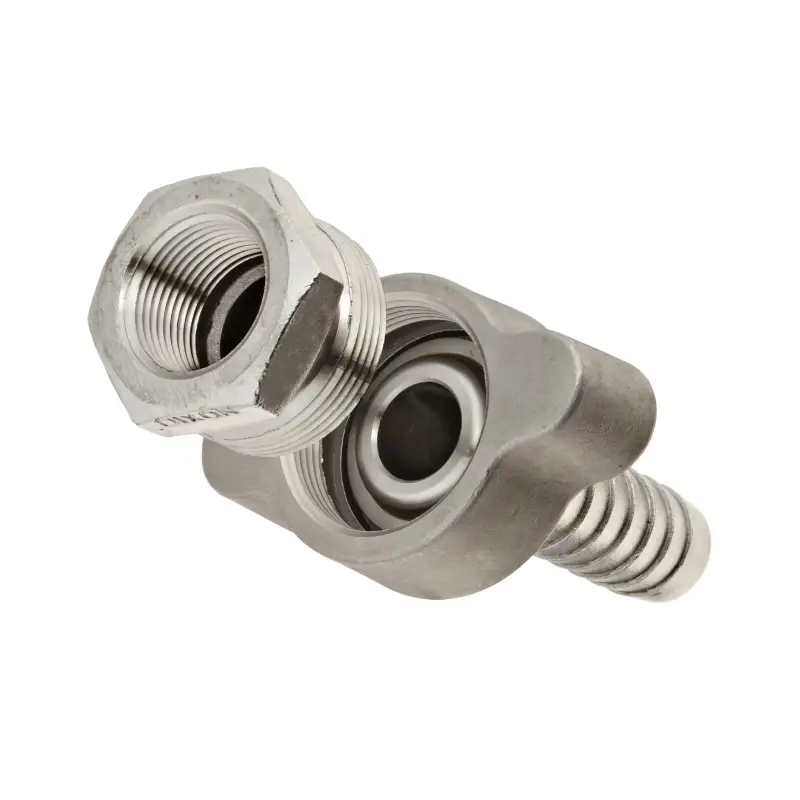

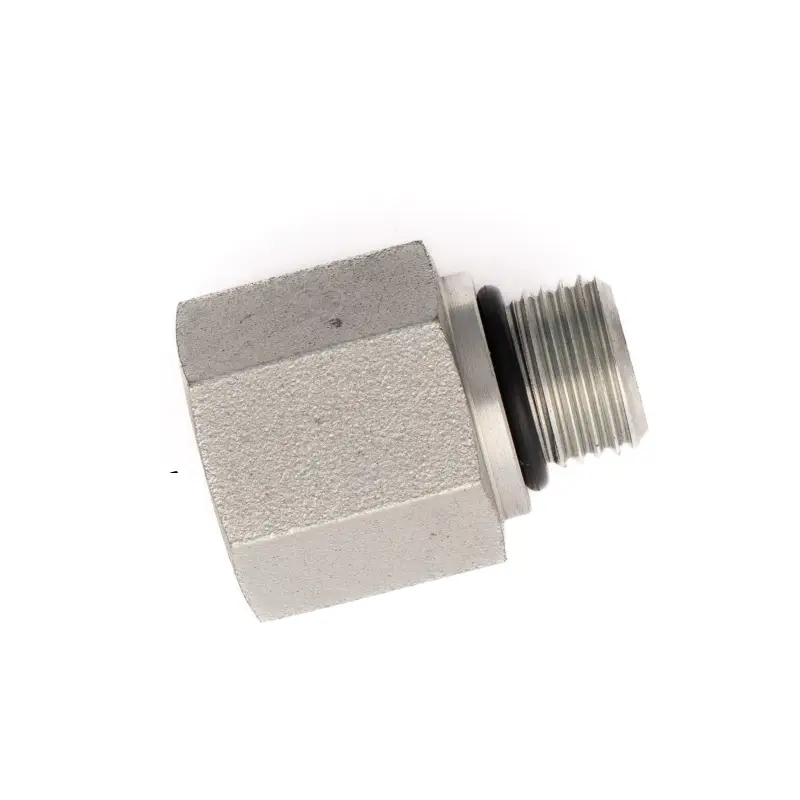

Boss Fitting

Boss fittings can be manufactured from a variety of materials, each with its own set of advantages and disadvantages. Common choices include:

• Stainless Steel: Known for its excellent corrosion resistance, high strength, and durability. Stainless steel fittings are ideal for applications exposed to harsh environments or where contamination is a concern.

• Carbon Steel: A more cost-effective option than stainless steel, carbon steel offers good strength and is suitable for many general-purpose applications. However, it is more susceptible to corrosion than stainless steel.

• Brass: Offers good machinability and corrosion resistance in certain environments. Brass fittings are often used in less demanding applications.

The choice of material will depend on factors such as the operating environment, the fluid being handled, and the required pressure and temperature ratings.

In addition to these common materials, other options may include:

• Aluminum: Lightweight and offers good corrosion resistance.
• Bronze: Provides good wear resistance and is often used in marine applications.

Ultimately, the optimal material for a given application will depend on a careful assessment of the specific requirements and constraints.

JIC (Joint Industry Conference) and Boss fittings are both types of connectors used in hydraulic systems, but they differ significantly in their design and sealing mechanisms:

• JIC Fittings:

  • Rely on a 37-degree flared tube end that creates a metal-to-metal seal when tightened.
  • Typically used with tubes.
  • Require precise flaring of the tube for proper sealing.

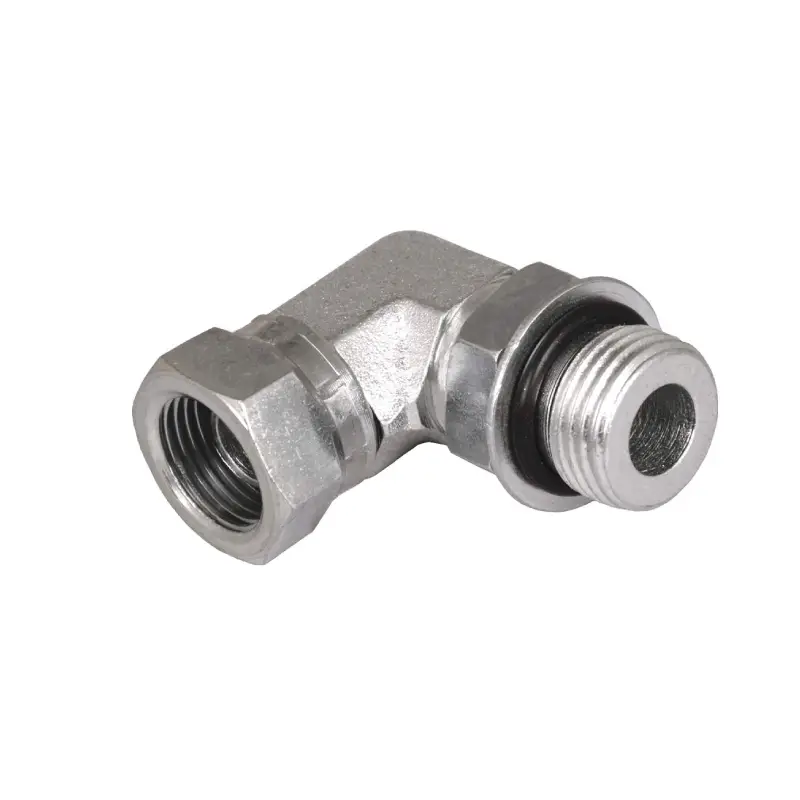

• Boss Fittings:

  • Utilize an o-ring for sealing.
  • Often integrated into larger components like pumps or valves.
  • Offer greater flexibility in terms of the types of components they can connect (hoses, tubes, etc.).

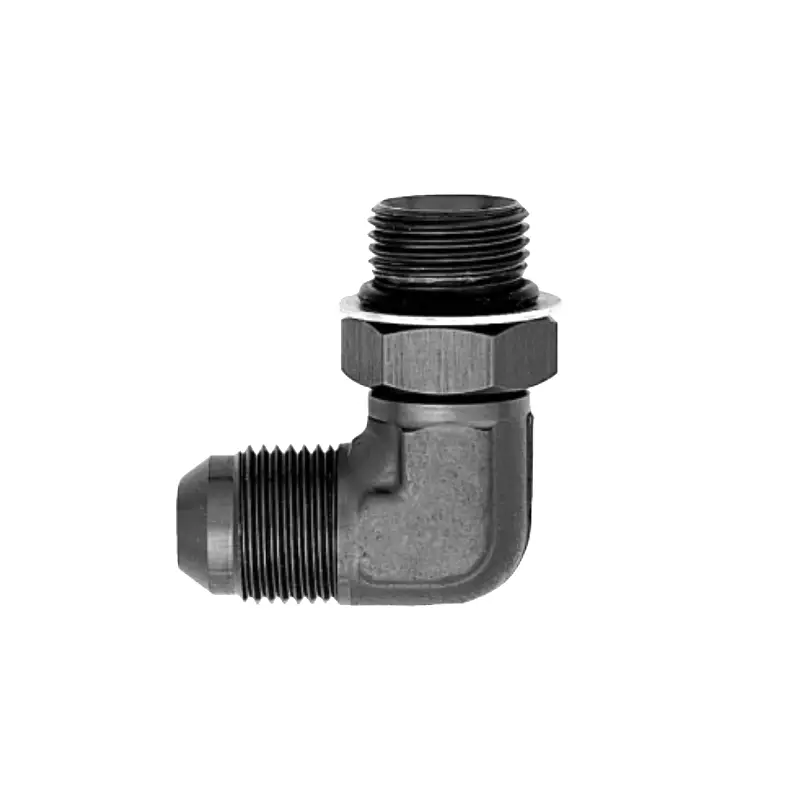

Key Differences between JIC fitting and Boss

Sealing Mechanism: JIC uses a metal-to-metal flare, while Boss fittings use an o-ring.

• Application: JIC is primarily used with tubes, while Boss fittings are more versatile.
• Installation: JIC requires precise tube flaring, while Boss fittings generally have a simpler installation process.

In essence:

• JIC fittings are known for their robustness and reliability in high-pressure applications involving tubes.
• Boss fittings offer greater flexibility and ease of use in various applications, particularly those involving hoses or components with integrated mounting points.

Here is a guide about how to measure hydraulic boss fittings in the following:

1. Identify Key Features

• Thread Type:

  • Thread Diameter: Measure the outside diameter of the male threads or the inside diameter of the female threads using a caliper or micrometer.
  • Thread Pitch: Determine the distance between adjacent threads.
  • Thread Type (if known): Identify the thread type (e.g., NPT, BSPP) if possible.

• Boss Diameter: Measure the diameter of the boss itself (the protruding part where the connection is made).

• O-Ring Groove Dimensions:

  • Measure the diameter of the o-ring groove.
  • Measure the depth of the o-ring groove.

2. Use Measuring Tools

• Calipers: Essential for accurate measurements of diameters and lengths.
• Micrometer: Provides highly precise measurements.
• Thread Pitch Gauge: Helps determine the thread pitch accurately.
• Ruler or Measuring Tape: Useful for measuring overall lengths.

3. Document Measurements

• Record all measurements carefully and accurately.
• Include units (e.g., inches, millimeters).
• Take multiple measurements to ensure accuracy and consistency.

4. Consult Resources

• Manufacturer‘s Specifications: Welcome to quote our hydraulic fitting manufacturer‘s part number or a drawing, refer to it for accurate dimensions.
• Cross-Reference Charts: Use online resources or manufacturer catalogs to cross-reference your measurements with available fitting sizes.

5. Consider Application

• The intended application will influence the selection of the correct fitting size.
• Factors like operating pressure, fluid type, and temperature should be considered.

Important Notes:

• Clean the Fitting: Ensure the fitting is clean and free from debris before measuring to avoid inaccurate readings.
• Use Proper Lighting: Good lighting will help you see the threads and other features clearly.
• Double-Check Measurements: Always double-check your measurements to ensure accuracy.

By following these steps and using the appropriate tools, you can accurately measure o-ring boss fittings and select the correct replacements or components for your hydraulic system.
