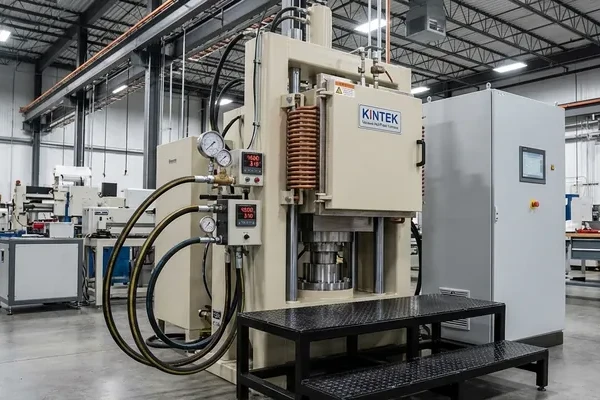

Power and Precision SAE 100R8 hoses are the primary choice for industrial hydraulic presses and high-pressure power units.
Their thermoplastic construction ensures zero contamination in sensitive systems, maintaining consistent power delivery and protecting precision valves during continuous-duty manufacturing cycles.

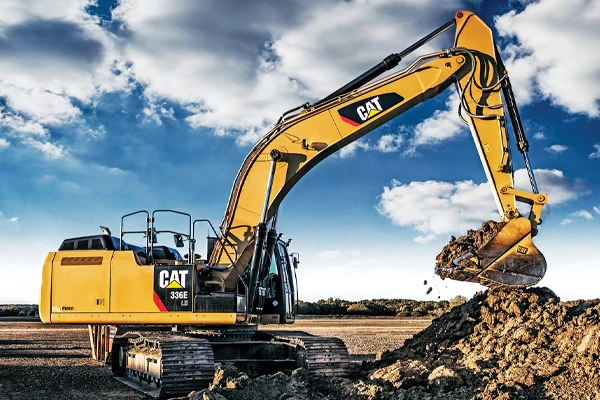

Rugged Reliability Designed for the demanding environments of excavators and loaders, these hoses handle high-pressure steering and auxiliary hydraulic functions.
The steel wire reinforced version offers superior resistance to external abrasion and mechanical impact on high-intensity jobsites.

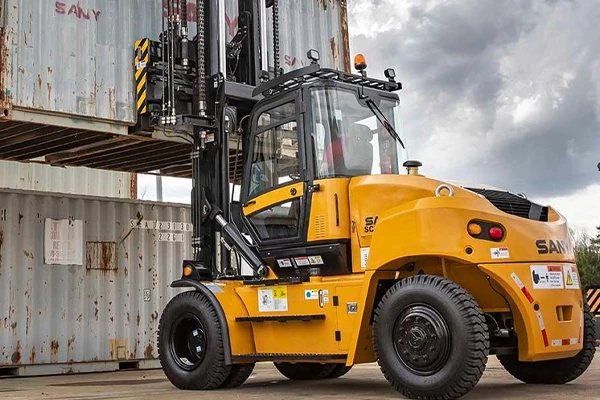

Synchronized Performance The Aramid Twin Hose configuration is essential for telehandlers and high-reach forklifts.
It provides high-pressure power for lifting mechanisms while the bonded design ensures perfectly synchronized movement, preventing hose kinking or tangling during rapid mast extension.
Critical Safety In emergency rescue equipment like “Jaws of Life” the high strength-to-weight ratio of Aramid-reinforced R8 hoses is vital.
They provide the extreme pressure needed for cutting tools while remaining portable and flexible enough for rapid deployment in crisis situations.
Advanced Polyamide Core Features seamless oil-resistant Polyamide inner tubes and weather-resistant covers, ensuring peak flow efficiency and long-term durability.
Superior Pressure Capacity Utilizes high-strength Aramid fiber to provide exceptional tensile strength and pressure resistance while maintaining a lightweight, flexible profile.
Enhanced System Routing Offers a significantly tighter bend radius than standard R2 rubber hoses, enabling efficient routing in complex, high-pressure machinery.
Broad Chemical Compatibility Fully compatible with synthetic esters, petroleum-based fluids, and water-glycol, preventing material degradation in aggressive industrial environments.
At the core of our manufacturing philosophy is an uncompromising commitment to safety and performance. Our SAE 100R7 hydraulic hoses are engineered to not only meet but exceed international industry standards, providing you with peace of mind in every application.
ISO 9001:2015: Adheres to world-class manufacturing standards, ensuring every high-pressure hose is produced with rigorous consistency and traceable quality across all production stages.
MSHA Certified: Equipped with advanced flame-retardant covers that exceed the safety benchmarks required for high-risk mining operations and volatile industrial environments worldwide.
CE Compliance: Fully compliant with European technical directives, guaranteeing that our high-pressure thermoplastic solutions meet the strictest environmental and safety performance criteria.
Impulse Test: Verified through extreme 500,000-cycle impulse trials, simulating years of intense hydraulic stress to ensure zero fatigue failure in high-pressure systems.
Cold Flexibility: Rigorously evaluated at -40°C (-40°F) to maintain superior elasticity and structural integrity, preventing material embrittlement during operations in extreme sub-zero climates.
Destructive Burst: Validated using destructive pressure testing to confirm a robust 4:1 safety ratio, providing critical protection against unpredictable, high-velocity hydraulic energy surges.
The most significant difference is the working pressure rating. SAE 100R8 is designed for high-pressure applications, whereas R7 is rated for medium pressure.
For example, a 1/2″ R8 hose can typically handle up to 3,500 PSI, while an R7 hose of the same size is limited to approximately 2,000 PSI.
This increased capacity is achieved through higher-density reinforcement materials like Aramid fiber or double-braided steel. While both offer similar chemical resistance, R8 is the necessary choice for systems where peak pressures exceed the safety thresholds of standard R7 thermoplastic hoses.
Aramid fiber is used because of its extraordinary strength-to-weight ratio. In high-pressure applications, Aramid provides the necessary tensile strength to contain thousands of pounds of pressure without the bulk or weight of multiple steel braids.
This makes the hose significantly lighter and more flexible, which is a major advantage for mobile equipment and handheld hydraulic tools. Additionally, Aramid is non-conductive and highly resistant to heat, ensuring that the hose maintains its structural integrity even when exposed to high-temperature hydraulic fluids or external heat sources in industrial plants.
While Aramid is lighter, high-tensile steel wire reinforcement is superior for applications involving extreme mechanical abuse or high-frequency pressure impulses.
Steel wire provides better protection against crushing, kinking, and external abrasions often found in heavy construction or mining environments.
If your equipment operates in a “high-impulse” environment where pressure surges are frequent and violent, the structural rigidity of steel wire helps absorb these shocks better than fiber. However, remember that steel reinforcement makes the hose conductive, so it should never be used near high-voltage power lines.
The Twin Hose configuration is designed to simplify the management of dual hydraulic lines, such as those used for “up and down” or “open and close” functions on hydraulic cylinders. By bonding two R8 hoses together, we eliminate the need for external cable ties or clamps, which can fail and lead to hose entanglement.
This is especially critical in forklift masts and boom lifts where the hoses must travel over pulleys. A bonded twin line ensures that both hoses travel at the same rate, reduces friction, and prevents the hoses from rubbing against machine components, significantly extending service life.
SAE 100R8 hoses feature a Polyamide (Nylon) or Polyester inner tube, which offers a much broader range of chemical compatibility than standard nitrile rubber. They are exceptionally resistant to petroleum-based oils, water-glycol, and synthetic ester hydraulic fluids.
This makes them ideal for modern industrial systems that use environmentally friendly or fire-resistant fluids that might degrade traditional rubber hoses. However, it is always critical to check the specific chemical concentration and operating temperature. For instance, while highly versatile, certain concentrated acids or high-temperature steam may still require specialized hose constructions beyond the standard R8 specification.
