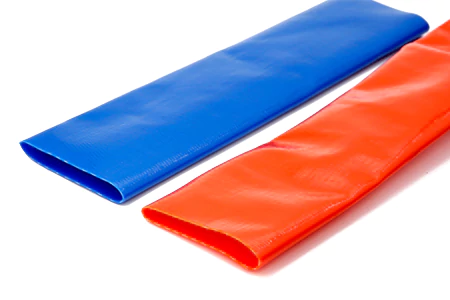

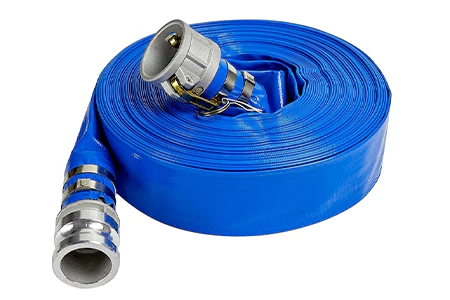

PVC Layflat Hose

Applications: Suitable for conveying liquid materials in the industry, agriculture irrigation, mines, and civil engineering.

Characteristics: Choosing high-strength polyester filament and high-quality PVC, it is successively winded, parted the threads regularly, and molded by plastic coated once. With an attractive appearance, soft surface and lightweight, high burst pressure, and long service life, the product is acid&alkali resistant, aging resistant, stretching resistant, anti-wrinkle, non-toxic, flavorless, and environmental protection.

Temperature range: -5ºC to +65 ºC

Inch Size

Metric Size Length  MAX.W.P. MAX.B.P.

Weight

At 23℃

Inch

I.D.mm Wall Thickness mm Bar Bar g/m
1” 25 1.3 100 4 15

150

1-1/4”

32 1.2 100 4 15 170
1-1/2” 38 1.2 100 5 15

190

2”

51 1 100 4 12 220
2-1/2” 64 1.1 100 4 12

300

3”

76 1.1 100 4 12 360
4” 103 1.25 100 4 12

550

5”

127 1.35 100 3.5 10 750
6” 153 1.35 100 3 9

900

8”

203 2 100 3 9 1600
10” 255 2.4 100 2.5 7

2600

12”

305 2.35 100 2 6 3000
14” 358 3 50 2 6

5000

16”

408 3 50 2 6

6000

Our Manufacturing Capabilities

Our factory is compounded with ISO 9001:2015 standards.

We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.

The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.

If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
