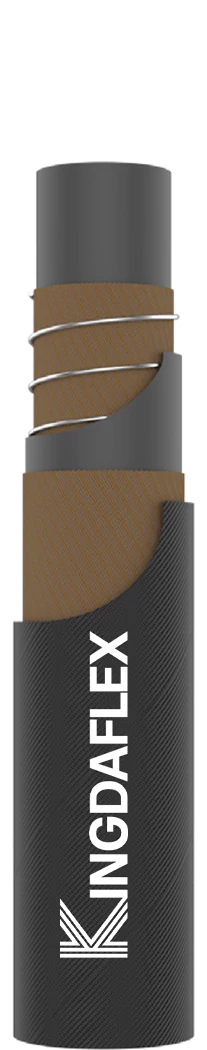

Tube: Oil resistant synthetic rubber
Reinforcement: High tensile cords and helix steel wire
Cover: Oil and weather resistant NBR/SBR synthetic rubber, black & smooth outer cover
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

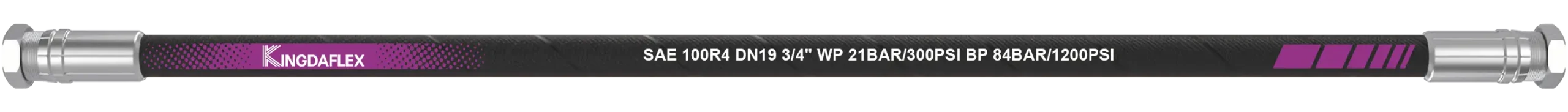

SAE 100R4 hydraulic hose, also called hydraulic suction hose can be used to convey hydraulic oil under low pressure, such as for the hydraulic system return line.
Advantages:
DN | Size | SAE | Inside Ø mm | Outside Ø mm | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | ||||
mm | Inch | Dash | Min | Max | Max | Bar | Psi | Bar | Psi | mm | Kg/m | m | |
19 | 19 | 3/4 | -12 | 18.2 | 19.8 | 34.9 | 21 | 305 | 84 | 1210 | 125 | 0.92 | 40 |
| 25 | 25 | 1 | -16 | 24.6 | 26.2 | 41.3 | 17 | 250 | 70 | 1015 | 150 | 1.10 | 40 |
32 | 32 | 1 1/4 | -20 | 30.6 | 33.0 | 50.8 | 14 | 200 | 56 | 810 | 200 | 1.30 | 40 |
| 38 | 38 | 1 1/2 | -24 | 36.9 | 39.3 | 57.2 | 10.5 | 150 | 42 | 610 | 255 | 1.80 | 40 |
51 | 51 | 2 | -32 | 49.2 | 52.4 | 69.9 | 7 | 100 | 28 | 410 | 300 | 2.23 | 40 |
| 63 | 63 | 2 1/2 | -40 | 61.9 | 65.1 | 82.6 | 4 | 60 | 17 | 250 | 355 | 3.23 | 40 |
76 | 76 | 3 | -48 | 74.6 | 77.8 | 95.3 | 4 | 60 | 16 | 230 | 460 | 4.25 | 40 |
| 89 | 89 | 3 1/2 | -56 | 87.3 | 90.5 | 107.9 | 3 | 40 | 12.5 | 180 | 530 | 5.05 | 40 |
102 | 102 | 4 | -64 | 100.0 | 103.2 | 120.7 | 2.5 | 40 | 10 | 145 | 610 | 5.60 | 40 |
Our factory is compounded with ISO 9001:2015 standards.
We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.
The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.
If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
