Tube: Oil resistant synthetic rubber
Reinforcement: Two fiber braids
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, lubricating oils, glycol, mineral oils, and more

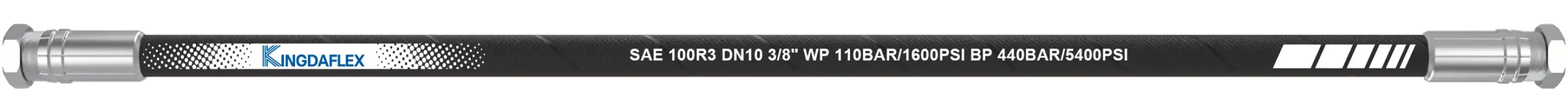

SAE 100R3 hydraulic hose is totally different from other hydraulic hoses, and the 100R3 hose is reinforced with textile fiber.
This fiber-reinforced hydraulic hose is suitable for delivering petroleum-based or water-based hydraulic fluids. 100R3 hydraulic hose is mainly applied for the low-pressure hydraulic line, compared with other high pressure hydraulic hoses.
100R3 hydraulic hose is structured with three layers.
Inner tube: Oil resistant synthetic rubber material
Reinforcement: Two layers of braided textile fiber, to make this 100R3 hydraulic hose lightweight and flexible.
Outer cover: Synther rubber material, oil-resistant, weather-resistant, abrasion-resistant.
DN |
Size | SAE | Inside
Ø mm |
Outside
Ø mm |
Working
Pressure |
Burst
Pressure |
Bend Radius | Weight |
Length |
|||||
mm |
Inch | Dash | Min | Max | Min | Max | Bar | Psi | Bar | Psi | mm | Kg/m |
m |
|
5 |
5 | 3/16 | -3 | 4.5 | 5.4 | 11.9 | 13.5 | 105 | 1520 | 420 | 6500 | 75 | 0.16 | 50/100 |
6 | 6.3 | 1/4 | -4 | 6.1 | 7.0 | 13.5 | 15.1 | 87 | 1350 | 348 | 5300 | 75 | 0.19 |
50/100 |
8 |
8 | 5/16 | -5 | 7.6 | 8.5 | 16.7 | 18.3 | 84 | 1300 | 336 | 5200 | 100 | 0.26 | 50/100 |
10 | 10 | 3/8 | -6 | 9.2 | 10.1 | 18.3 | 19.8 | 78 | 1200 | 312 | 4840 | 100 | 0.28 |
50/100 |
13 |
13 | 1/2 | -8 | 12.4 | 13.5 | 23.0 | 24.6 | 70 | 1080 | 280 | 4340 | 125 | 0.40 | 50/100 |
16 | 16 | 5/8 | -10 | 15.6 | 16.7 | 26.2 | 27.8 | 61 | 945 | 244 | 3780 | 140 | 0.55 |
50/100 |
19 |
19 | 3/4 | -12 | 18.7 | 19.8 | 31.0 | 32.5 | 52 | 800 | 208 | 3220 | 150 | 0.69 | 50/100 |
25 | 25 | 1 | -16 | 25.1 | 26.2 | 36.9 | 39.3 | 39 | 600 | 156 | 2420 | 205 | 0.82 |
50 |
