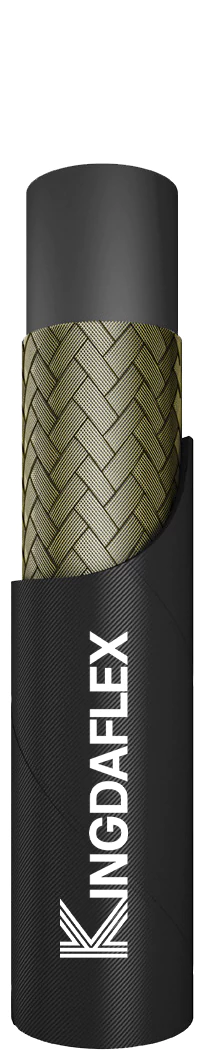

Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
DN | Size | SAE | Inside Ø mm | Braid Ø mm | Outside Ø mm | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | |||||
Inch | mm | Dash | Min | Max | Min | Max | Max | Bar | Psi | Bar | Psi | mm | Kg/m | m | |
5 | 3/16″ | 5 | -03 | 4.6 | 5.4 | 9.0 | 10.0 | 12.5 | 250 | 3625 | 1000 | 14500 | 90 | 0.19 | 50/100 |
| 6 | 1/4″ | 6.3 | -04 | 6.2 | 7.0 | 10.6 | 11.1 | 14.1 | 225 | 3260 | 900 | 13050 | 100 | 0.21 | 50/100 |
8 | 5/16″ | 8 | -05 | 7.7 | 8.5 | 12.1 | 12.7 | 15.7 | 215 | 3120 | 850 | 12325 | 115 | 0.24 | 50/100 |
| 10 | 3/8″ | 10 | -06 | 9.3 | 10.1 | 14.5 | 15.1 | 18.1 | 180 | 2610 | 720 | 10440 | 130 | 0.33 | 50/100 |
13 | 1/2″ | 12.5 | -08 | 12.3 | 13.5 | 17.5 | 18.3 | 21.4 | 160 | 2320 | 640 | 9280 | 180 | 0.41 | 50/100 |
| 16 | 5/8″ | 16 | -10 | 15.5 | 16.7 | 20.6 | 21.4 | 24.5 | 130 | 1885 | 520 | 7540 | 200 | 0.45 | 50/100 |
19 | 3/4″ | 19 | -12 | 18.6 | 19.8 | 24.6 | 25.4 | 28.5 | 105 | 1520 | 420 | 6090 | 240 | 0.58 | 50/100 |
| 25 | 1″ | 25 | -16 | 25.0 | 26.4 | 32.5 | 33.3 | 36.6 | 88 | 1280 | 350 | 5075 | 300 | 0.88 | 50/100 |
32 | 1 1/4″ | 31.5 | -20 | 31.4 | 33.0 | 39.3 | 40.5 | 44.8 | 63 | 910 | 250 | 3625 | 420 | 1.23 | 20/40 |
| 38 | 1 1/2″ | 38 | -24 | 37.7 | 39.3 | 45.6 | 46.8 | 52.1 | 50 | 725 | 200 | 2900 | 500 | 1.51 | 20/40 |
51 | 2″ | 51 | -32 | 50.4 | 52.0 | 58.7 | 60.2 | 65.5 | 40 | 580 | 160 | 2320 | 630 | 1.97 | 20/40 |
Our factory is compounded with ISO 9001:2015 standards.
We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.
The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.
If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
We are leading hydraulic hose manufacturer from China, and please feel free to contact us at any time if you are looking for hydraulic hoses, hydraulic hose fittings, industrial hoses, and other hose related products. Welcome to get in touch with us any time to get more hose solutions for your projects.
If you are looking for a professional hydraulic hose & industrial hose manufacturer, Kingdaflex will be your best choice. We provide better hydraulic hose wholesale and the best solution to help your hydraulic projects. Welcome to contact us at any time.
