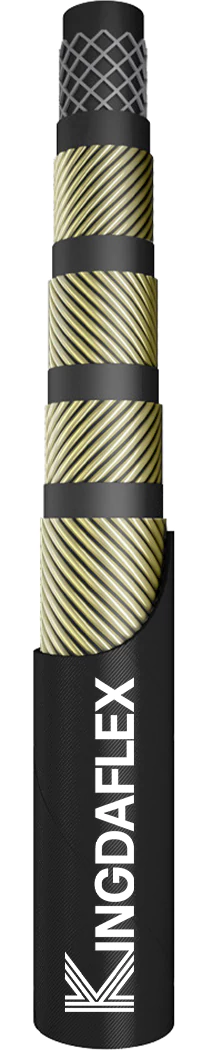

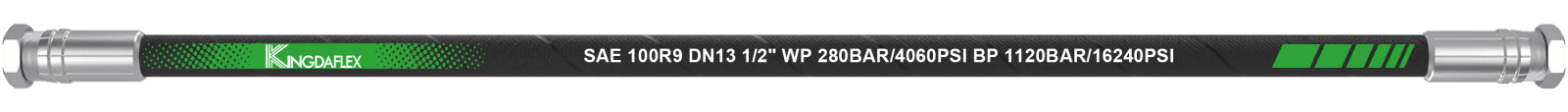

SAE 100R9 | Hydraulic Hose

Tube: Oil resistant synthetic rubber

Reinforcement: Four high tensile steel wire spiral layers

Cover: Abrasion, ozone, and weather resistant synthetic rubber

Temperature: -40°C to +100°C

 Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

DN

Size SAE Inside

Ø mm

Outside

Ø mm

Working

Pressure

Burst

Pressure

Bend Radius Weight

Length

mm

inch Dash Min Max Max Bar Psi Bar Psi mm Kg/m

m

10

10 3/8 -06 9.3 10.1 20.6 21.1 315 4560 630 9135 125 0.70 40
13 12.5 1/2 -08 12.3 13.5 23.8 24.3 280 4060 560 8120 180 0.83

40

19

19 3/4 -12 18.6 19.8 30.6 31.9 210 3045 420 6090 240 1.30 40

25

25 1 -16 25.0 26.4 38.5 40.5 210 3045 420 6090 300 1.70 40
32 31.5 11/4 -20 31.4 33.0 49.2 50.7 175 2540 350 5075 420 3.08

40

38

38 11/2 -24 37.7 39.3 55.6 140 2030 280 4060 500 4.30 40
51 51 2 -32 50.4 52.0 69.9 140 2030 280 4060 660 5.63

40

Our Manufacturing Capabilities

Our factory is compounded with ISO 9001:2015 standards.

We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.

The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.

If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
