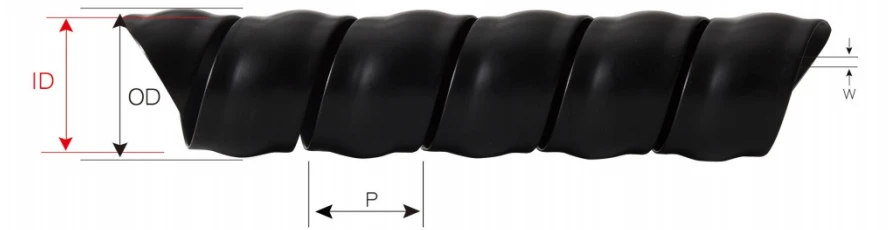

Plastic Spiral Hose Guard (Convex/Arc-Surface)

Material: HDPE (Halogen-Free, Recyclable) or PP (Polypropylene).

Key Features: This type is characterized by its arc-shaped or convex outer surface, which is thicker at the center and thinner towards the edges . This architectural design significantly enhances its resistance to crushing, impact, and constant mechanical abuse compared to the flat-surface type.

Performance & Applications: It is engineered for demanding conditions involving heavy compression, sharp impacts, and extreme abrasion. It is the preferred choice for protecting hydraulic hoses and cables on construction machinery (excavators, loaders), mining equipment, and other heavy-duty mobile applications​ where hoses are subjected to being stepped on or pinched by rocks and debris.

Structural Advantage: The arched profile acts like a structural rib, distributing force more effectively and providing superior mechanical strength and pressure resistance, ensuring reliable protection for expensive hydraulic systems in the most punishing environments.

Temperature Rnge: -50°C o +80°C (with short-term resistance up to +100°C).
