DIN 1SNK

Applications

Excavators
Mining
Agricultural machinery
Mechanical arm
forklift truck
Oil well
bulldozers
Offshore oil field
Construction machinery
CNC machine tool
Internal Hose:
Oil resistant synthetic rubber.
资源 7
Reinforcement:
One high tensile steel wire braid.
Cover:
Oil and weather resistant synthetic rubber, Wrapped/Smooth cover.
资源 5
DIN 1SNK hydraulic hose
ReliaBull
资源 4Temperature
Application:
Be suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
资源 3Temperature
Temperature:
-40°C to +100°C (-55°C to +100°C, intermittent 120°C).
资源 2Working Pressure
Working Pressure:
110 – 290 Bar / 1595 – 4205 Psi.
Get a Quote
Size Inside Braid Outside Working Pressure Burst Pressure Bend Radius Weight length
Size Inside (mm) Braid (mm) Outside (mm) Working Pressure Burst Pressure Bend Radius Weight Length
DN inch mm Dash Min Max Min Max Min Max Bar Psi Bar Psi mm kg/m M
6 1/4″ 6.4 -4 6.1 6.9 9.4 10.0 11.4 12.0 290 4205 1160 16820 75 0.19 50/100
8 5/16″ 7.9 -5 7.7 8.5 11.1 11.7 13.1 16.7 250 3625 1000 14500 85 0.22 50/100
10 3/8″ 9.5 -6 9.3 10.1 13.2 13.8 15.2 15.8 230 3335 920 13340 90 0.25 50/100
13 1/2″ 12.7 -8 12.3 13.5 16.6 17.2 18.6 19.2 210 3045 840 12180 130 0.35 50/100
16 5/8″ 15.9 -10 15.5 16.7 20.1 20.7 22 22.8 150 2175 600 8700 150 0.45 50/100
19 3/4″ 19.0 -12 18.6 19.8 23.5 24.3 25.5 26.3 125 1815 500 7260 180 0.50 50/100
25 1″ 25.4 -16 25.0 26.4 31.2 32.0 33.6 34.4 110 1595 440 6380 230 0.75 50

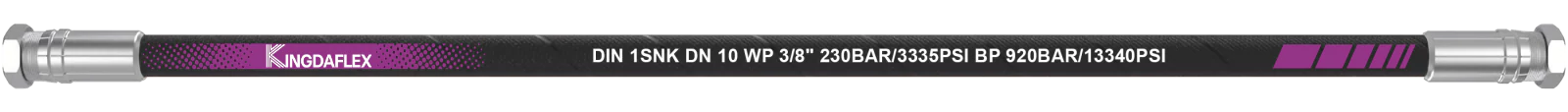

Marking / Layline

(Printing, Ink, Embossed)
DIN 1SNK hose
Cover Type
Cover Type:
Wrapped, Smooth
Packing Type
Packing Type:
Roll, Pallet, Reel
Outward Appearance
Outward Appearance:

●Black  ●Blue  ●Red

Certificate

ISO9001
ISO9001
ISO14001
ISO14001
ISO45001
ISO45001
MSHA
MSHA
BV
BV
CE
CE
SGS
SGS
GOST
GOST
DIN
DIN
SAE
SAE
MA
MA
