What is the difference between DIN EN857 2SC and DIN EN853 2SN?

DIN EN857 2SC is a compact version of DIN EN853 2SN. It features a smaller outer diameter and a tighter bend radius (about 30% less), making it more flexible and lighter while maintaining the same high-pressure rating.

What are the benefits of using 2SC hydraulic hose?

The main benefits are its compact size and high flexibility, which allow for easier installation in tight spaces, such as inside telescopic booms. It is also lighter than standard 2SN hoses.

Can EN857 2SC hose be used with standard 2SN fittings?

Yes, 2SC hoses generally use the same standard non-skive fittings as 2SN hoses. However, proper crimping dimensions must be followed to ensure a secure assembly due to the compact nature of the hose.

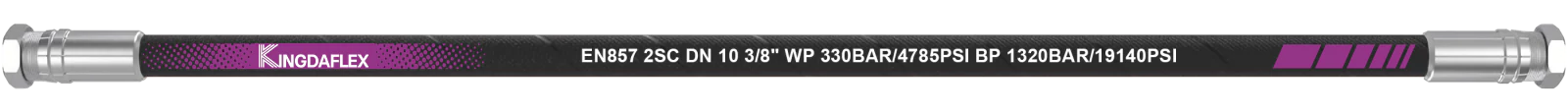

EN857 2SC | Hydraulic Hose

Name: DIN EN857 2SC Hydraulic Hose Manufacturer | Compact 2-Wire Braid High Pressure
Brand: Kingdaflex
SKU: EN857 2SC
Availability: InStock

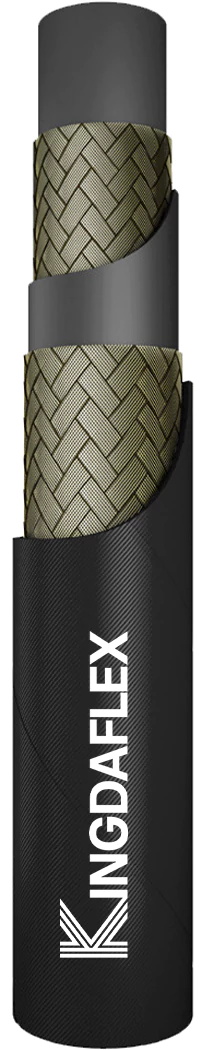

Tube: Oil resistant synthetic rubber

Reinforcement: Two high tensile steel wire braids

Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover

Temperature: -40°C to +100°C (-55°C to +150°C)

Application: Be suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

The Kingdaflex DIN EN857 2SC hydraulic hose is the ultimate solution for high-pressure applications where installation space is critical. Unlike the standard DIN EN853 2SN, the 2SC series offers a more compact outer diameter and a tighter bend radius, making it significantly easier to route through complex machinery. Reinforced with two layers of high-tensile steel wire, it delivers the same robust pressure performance as 2SN but with superior flexibility and lighter weight.

DN	INCH SIZE		SAE DASH SIZE	Inside (mm)		Braid (mm)		Outside (mm)	Working Pressure		Burst Pressure		Bend Radius	Weight	Length
mm	inch	mm	Dash	Min	Max	Min	Max	Max	Bar	Psi	Bar	Psi	mm	kg/m	M
6	1/4″	6.3	-4	6.1	6.9	10.6	11.7	14.2	400	5800	1600	23200	75	0.30	50/100
8	5/16″	8	-5	7.7	8.5	12.1	13.3	16.0	350	5075	1400	20300	85	0.34	50/100
10	3/8″	10	-6	9.3	10.1	14.4	15.6	18.3	330	4785	1320	19140	90	0.42	50/100
13	1/2″	12.5	-8	12.3	13.5	17.5	19.1	21.5	275	3990	1100	15950	130	0.54	50/100
16	5/8″	16	-10	15.5	16.7	20.5	22.3	24.7	250	3625	1000	14500	170	0.68	50/100
19	3/4″	19	-12	18.6	19.8	24.6	26.4	28.6	215	3120	860	12470	200	0.80	50/100
25	1″	25	-16	25.0	26.4	32.5	34.3	36.6	165	2390	660	9570	250	1.15	50

Difference Between DIN EN857 2SC and DIN EN853 2SN

More Compact: 2SC hoses have a smaller outer diameter, allowing for tighter bundling in hose tracks.
Superior Flexibility: With a bend radius approximately 30% smaller than 2SN, 2SC hoses reduce installation time and fatigue in tight bends.
Weight Reduction: The 2SC construction is lighter, which is crucial for reducing the overall weight of mobile equipment like crane booms and telescopic loaders.
Same Pressure Rating: Despite being more compact, it maintains the high working pressure capabilities of the 2SN standard.

Applications of DIN EN857 2SC

Telescopic Booms: Ideal for telehandlers, mobile cranes, and aerial work platforms where hoses must route inside narrow boom sections.
Mobile Hydraulics: Excavators, forklifts, and agricultural machinery.
Compact Equipment: Mini-excavators and skid steers.
High Pressure Lines: Hydraulic system pressure lines with petroleum-based fluids.

FAQs

Q: Can I use EN857 2SC instead of EN853 2SN?

A: Yes, EN857 2SC is often a superior upgrade. It matches the pressure rating of 2SN but offers better flexibility and a smaller bend radius. However, always check if your specific application requires the thicker cover of 2SN for extreme external abrasion.

Q: What fittings are compatible with 2SC hose?

A: 2SC hoses are typically compatible with standard non-skive fittings used for 2SN/R2AT hoses. However, due to the slightly smaller OD, it is crucial to use the correct crimping diameter specified in our crimping chart.

Q: Is the 2SC hose suitable for impulse applications?

A: Yes, it is designed to withstand high impulse loads typical of hydraulic systems, meeting international standards for impulse life.
