Custom hydraulic cylinder hoses and hose assemblies for construction equipment, mining machinery, industrial hydraulic systems, and replacement markets.
High-pressure hose solutions | OEM and bulk supply
Hose assembly available | Multiple fitting standards

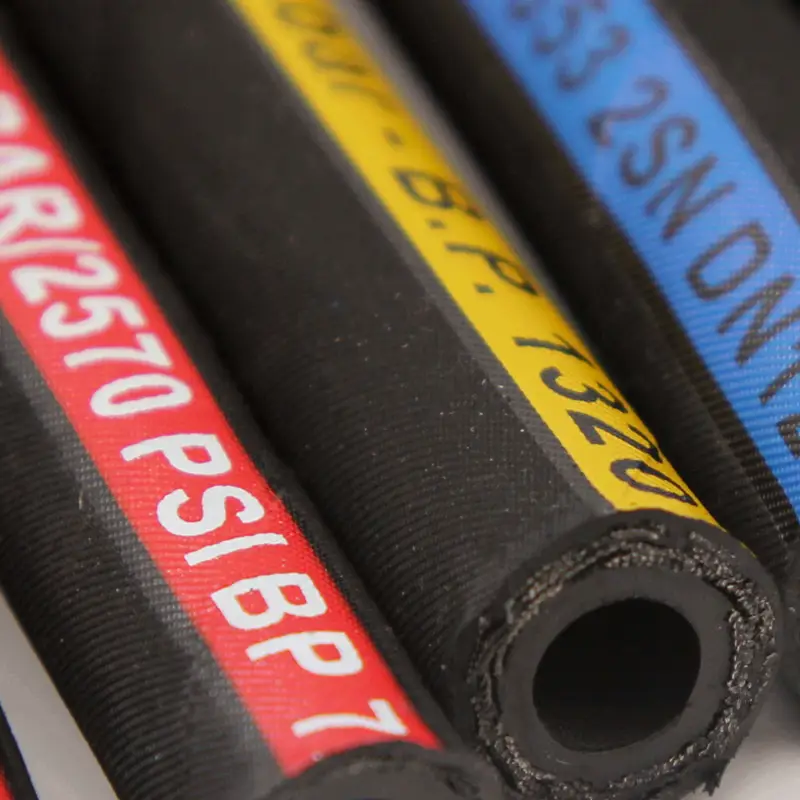

Our high-pressure hydraulic cylinder hose is designed for hydraulic systems that operate under heavy loads and frequent pressure fluctuations. It is widely used in excavators, loaders, cranes, mining machinery, and other mobile equipment where stable pressure transmission is critical.
Built with reinforced layers and durable rubber materials, this hose offers strong resistance to pressure spikes and demanding operating conditions.
It helps equipment manufacturers and industrial buyers improve system reliability, reduce downtime, and maintain safe hydraulic performance in high-pressure applications.

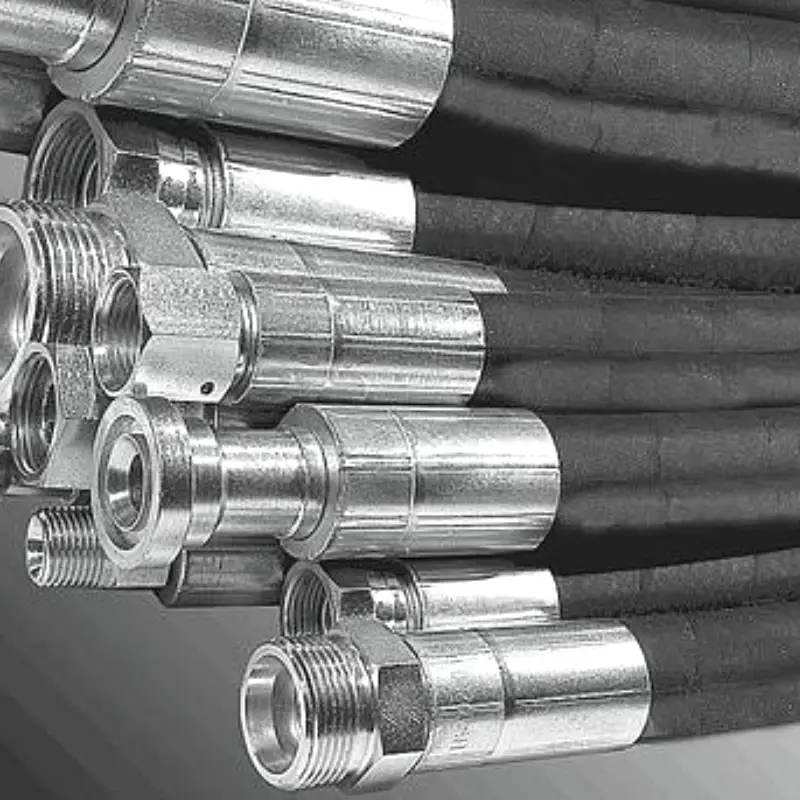

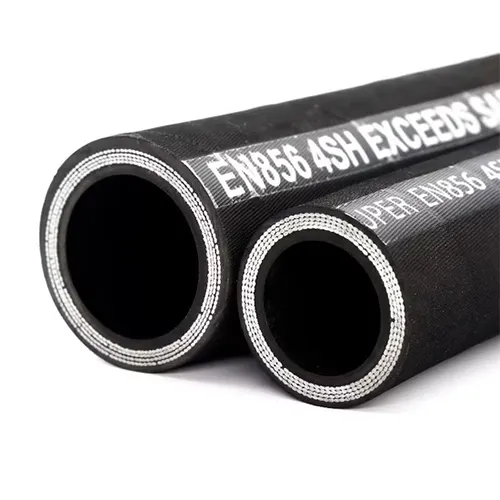

This abrasion-resistant hydraulic cylinder hose is developed for applications where the hose surface may contact rough machinery parts, metal edges, stone, or other harsh external conditions.
It is especially suitable for mining equipment, construction machinery, and heavy-duty hydraulic systems exposed to constant wear. The outer cover is engineered for improved resistance to rubbing, scuffing, and surface damage during operation.
By extending hose service life in demanding environments, it helps reduce maintenance frequency and lowers replacement costs for equipment owners and distributors.

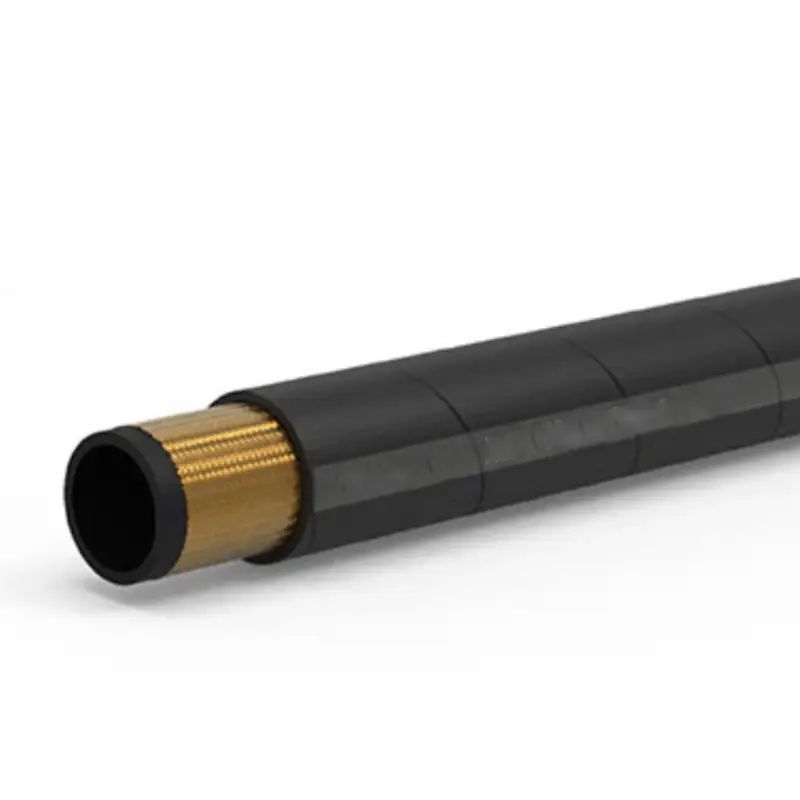

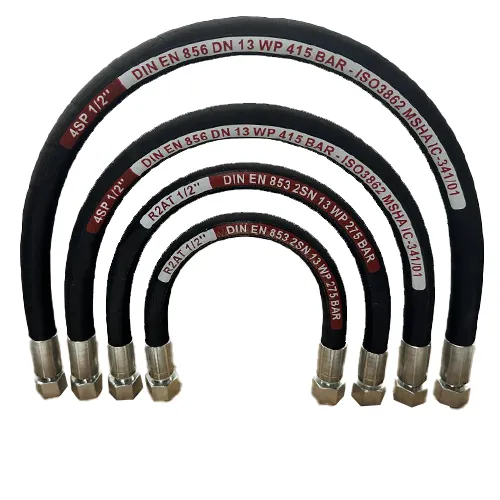

Our flexible hydraulic cylinder hose is suitable for compact hydraulic systems where installation space is limited and hose routing is complex. It is commonly used in mobile machinery, agricultural equipment, compact construction equipment, and hydraulic assemblies requiring tighter bend performance.
With optimized flexibility and bend radius, this hose makes installation easier while helping reduce stress at connection points. It supports cleaner system layout, improves assembly efficiency, and provides more reliable performance in applications where rigid routing options are not practical.
This high-temperature hydraulic cylinder hose is designed for hydraulic systems operating in elevated ambient temperatures or near heat-generating components. It is often used in industrial machinery, mining equipment, engine-adjacent hydraulic systems, and other demanding environments where standard hose materials may age faster.
With heat-resistant construction and durable outer cover options, it helps maintain hose integrity under continuous thermal exposure. This makes it a reliable choice for buyers who need stable hydraulic performance, longer service life, and reduced risk of premature hose failure.
Representative hose models for hydraulic cylinder and high-pressure hydraulic system applications. Full technical datasheets are available upon request.
| Model | Reinforcement | Working Pressure | Bend Radius | Main Features | Recommended Use |
| SAE 100R1AT / EN853 1SN | One high tensile steel wire braid | 40–250 bar | 90–630 mm | Standard single-wire braided hydraulic hose with oil-resistant tube and weather-resistant cover | General hydraulic systems, standard hydraulic cylinder lines, industrial equipment |
| SAE 100R2AT / EN853 2SN | Two high tensile steel wire braids | 80–420 bar | 90–630 mm | Double-wire braided hose for higher pressure service, good durability and stable hydraulic transmission | Construction machinery, hydraulic cylinders, heavy-duty hydraulic equipment |
| EN857 1SC | One high tensile steel wire braid | 88–225 bar | 75–150 mm | Compact hydraulic hose with tighter bend radius and reduced outer diameter | Compact hydraulic routing, mobile equipment, space-limited installations |
| EN857 2SC | One high tensile steel wire braid | 168–400 bar | 75–250 mm | Compact high-pressure hose with improved flexibility for tighter installation spaces | Mobile machinery, compact hydraulic systems, equipment with limited routing space |
| SAE 100R16 | Two high tensile steel wire braids | 210–420 bar | 50–150 mm | Compact two-wire braided hose with high pressure capability and smaller bend radius | High-pressure compact hydraulic systems, cylinder lines, OEM hydraulic assemblies |
| SAE 100R17 | One high tensile steel wire braid | 210–225 bar | 50–150 mm | Compact hose designed for tighter bend radius and flexible routing in hydraulic systems | Compact equipment, replacement hose assemblies, tight-routing hydraulic circuits |
| EN856 4SP | Four high tensile steel wire spiral layers | 165–450 bar | 150–660 mm | Four-spiral high-pressure hose with abrasion-, ozone-, and weather-resistant cover | Heavy machinery, mining equipment, severe-duty hydraulic systems |
| EN856 4SH | Four high tensile steel wire spiral layers | 250–420 bar | 280–700 mm | Heavy-duty spiral hose for very high pressure and demanding service conditions | Mining, construction equipment, high-impulse hydraulic circuits |
| SAE 100R12 | Four high tensile steel wire spiral layers | 210–280 bar | 180–560 mm | Spiral hydraulic hose for heavy load, impulse resistance, and demanding hydraulic service | Hydraulic cylinders under heavy load, industrial and mobile hydraulic systems |
| SAE 100R13 | Multiple spiral steel wire layers | 350 bar | 300–640 mm | High-pressure multi-spiral hydraulic hose for severe-duty applications | Extreme-duty hydraulic equipment, mining and high-pressure systems |
| SAE 100R15 | Multiple spiral steel wire layers | 420 bar | 75–680 mm | Ultra high-pressure spiral hydraulic hose for the most demanding service conditions | Severe service hydraulic systems, very high pressure and impulse applications |
Oil-compatible inner tube for stable hydraulic fluid transfer.
Multiple reinforcement options for pressure strength and durability.
Protective covers resist abrasion, oil, weather, and wear.
Suitable for standard and high-temperature hydraulic environments.
Reliable hose solutions for boom, arm, bucket, and cylinder systems.
Built for hydraulic lifting, steering, and continuous heavy-load operation.
Suitable for blade control, tilt functions, and rugged jobsite conditions.
Supports stable hydraulic movement in lifting and extension systems.
Designed for abrasive, high-pressure, and harsh underground working environments.
Ensures efficient fluid transfer in stationary and mobile hydraulic systems.
Used in hydraulic presses, automation systems, and production equipment.
Ideal for aftermarket replacement, maintenance projects, and repair inventories.
Kingdaflex manufactures hydraulic cylinder hoses and hose assemblies for high-pressure hydraulic systems used in construction machinery, mining equipment, hydraulic power units, and industrial machinery.
Our products are designed to handle demanding working conditions such as high pressure, continuous vibration, abrasive environments, and complex hose routing.
We support OEM manufacturers, equipment distributors, repair suppliers, and replacement markets with reliable hose solutions tailored to specific applications. From hose selection and fitting matching to assembly production and bulk supply, we help buyers source hydraulic cylinder hose products that meet performance, durability, and delivery requirements for professional hydraulic systems.
Our hydraulic cylinder hoses are available for a wide range of working pressures, depending on hose structure, reinforcement type, and application requirements. We can recommend suitable options for standard, high-pressure, and heavy-duty hydraulic systems.
Yes. We supply both hydraulic cylinder hoses and complete hose assemblies with crimped fittings. Customers can choose fitting type, hose length, angle, and assembly configuration based on actual equipment requirements.
We support common fitting standards such as BSP, JIC, NPT, ORFS, and metric fittings. If you have a sample, drawing, or technical requirement, we can help match the correct connection solution.
Yes. We support custom production based on customer samples, technical drawings, or application parameters. This helps buyers source hydraulic hose products that match specific equipment and installation needs.
Our products are widely used in construction machinery, mining equipment, agricultural machinery, hydraulic power systems, industrial equipment, and aftermarket repair and replacement supply.
Yes. We support OEM service, custom marking, private label requirements, and bulk supply for equipment manufacturers, distributors, wholesalers, and industrial procurement projects.
