Kingdaflex provides heavy-duty hydraulic hoses engineered to withstand high-pressure shocks. Our ultra-abrasion resistant covers and wide temperature range ensure reliability in the toughest mining environments
Engineered for ultimate durability, our mining hoses deliver peak performance and safety in the world’s most demanding environments.
Featuring four high-tensile steel wire spirals, this hose handles extreme pressure surges in heavy-duty excavators and drills. It offers excellent abrasion and weather resistance.
Designed for high-pressure hydraulic fluid transmission, its four-layer steel reinforcement provides superior durability. It is built to resist ozone and harsh mining conditions.
This spiral hose is engineered for high-pressure petroleum-based hydraulic fluid delivery. Its four-layer reinforcement ensures a long service life in rugged mining environments.
This heavy-duty hose utilizes four spiral layers for high-pressure performance. It is ideal for petroleum-based fluids and fuels in mobile mining equipment and machinery.
Available with four or six high-tensile steel wire spirals, this hose delivers maximum power under extreme pressure. Its robust cover resists abrasion and ozone.
Built with four or six spiral layers, this hose satisfies the highest pressure requirements of modern mining equipment. It remains reliable under constant heavy-duty cycles.
The mining environment is a battleground of rocks, dust, and friction. Our hoses are built with an Ultra-Wear Synthetic Rubber Cover designed to survive. Outlasts standard hydraulic hoses by 10 times in abrasive environments.
The Benefit: Zero surface fraying or cover degradation when dragged across jagged ore or high-friction pulleys, significantly extending replacement intervals.
Mining machinery like excavators and drill rigs subject hoses to violent pressure spikes. While standard hoses fail early, ours are engineered for longevity. Successfully passed over 1,000,000 impulse cycles at 133% of maximum working pressure.
The Benefit: Guaranteed “No-Burst” performance during high-frequency operations, protecting your hydraulic system from catastrophic failure and unscheduled downtime.
Safety in underground and surface mining is non-negotiable. Our materials are formulated to handle the toughest climates and safety codes.
A high-pressure hose is only as good as its ends. We ensure a perfect “bite” between the hose and the coupling.
Precision Engineering: Optimized for use with precision-matched crimped fittings to create a unified structural bond.
The Benefit: Achieves a 100% leak-free seal even under the maximum working pressure of 420 Bar (6,090 PSI), preventing fluid loss and environmental contamination on-site.

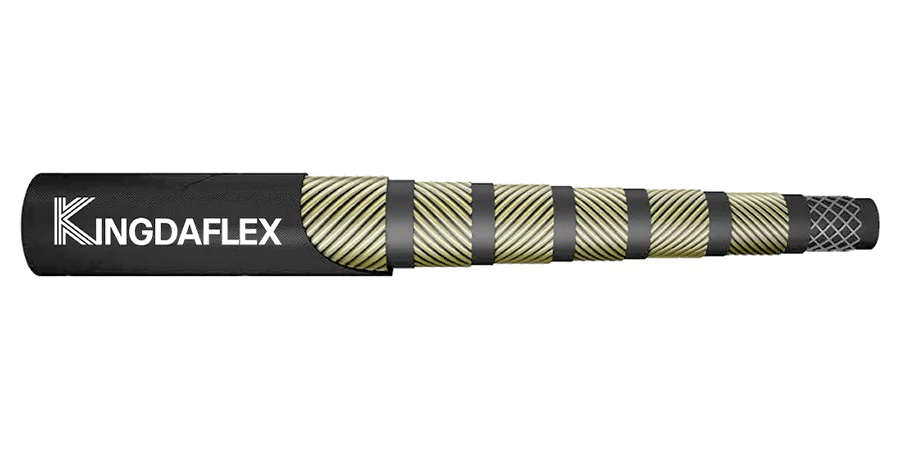

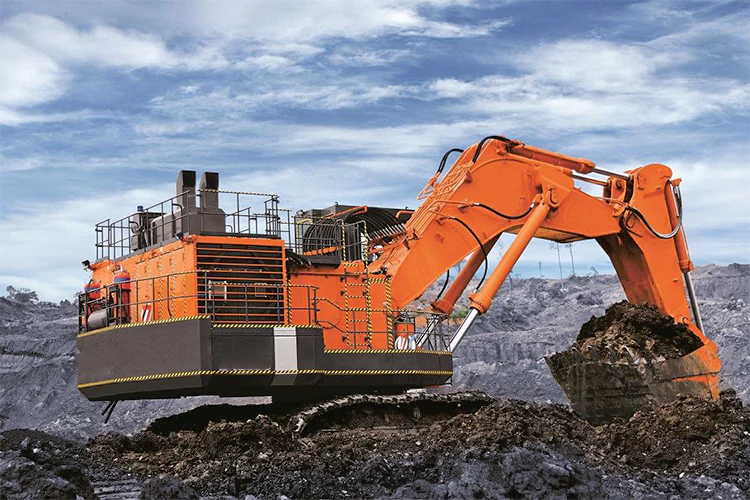

The hydraulic system serves as the lifeblood of excavators and loaders, where the main pump lines and boom circuits must endure relentless pressure surges and constant mechanical movement. For these critical paths, our SAE 100R15 and SAE 100R13 hoses provide a robust solution, offering a constant working pressure of up to 42.0 MPa.
By integrating these high-tensile spiral steel reinforced hoses, mine operators can ensure smooth, powerful digging and lifting cycles, effectively eliminating the risk of catastrophic line bursts that lead to expensive equipment downtime and safety hazards on the quarry floor.

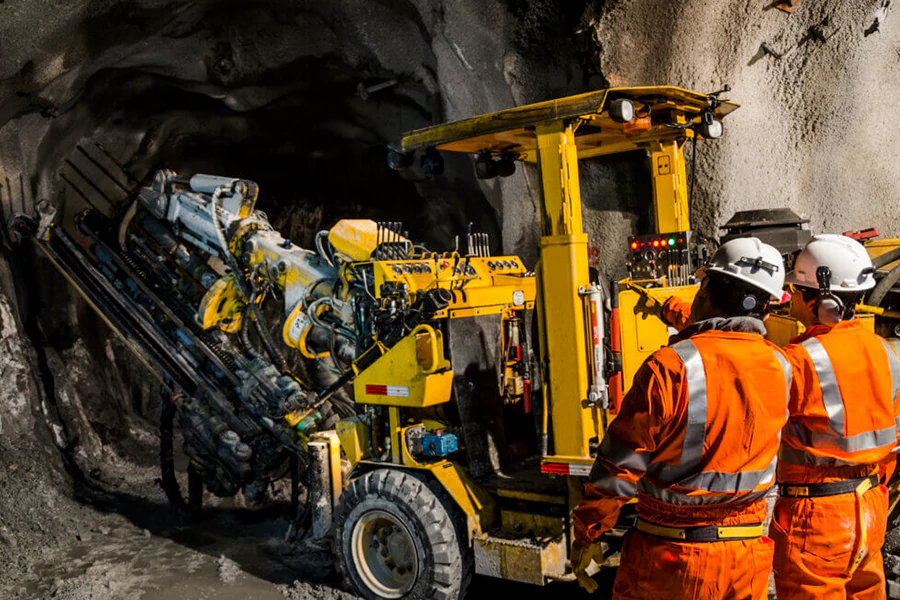

Surface and underground drill rigs operate in some of the most punishing conditions, subjecting hydraulic lines to intense high-frequency vibrations and rapid-fire pressure pulses.
To combat these forces, our EN856 4SH and SAE 100R12 hoses are engineered with superior fatigue resistance and a tighter bend radius for compact routing.
These hoses maintain structural integrity and consistent hydraulic torque even during heavy-duty percussion drilling, ensuring that the feed and rotation systems remain leak-free despite the continuous mechanical stress and abrasive rock dust characteristic of drilling sites.

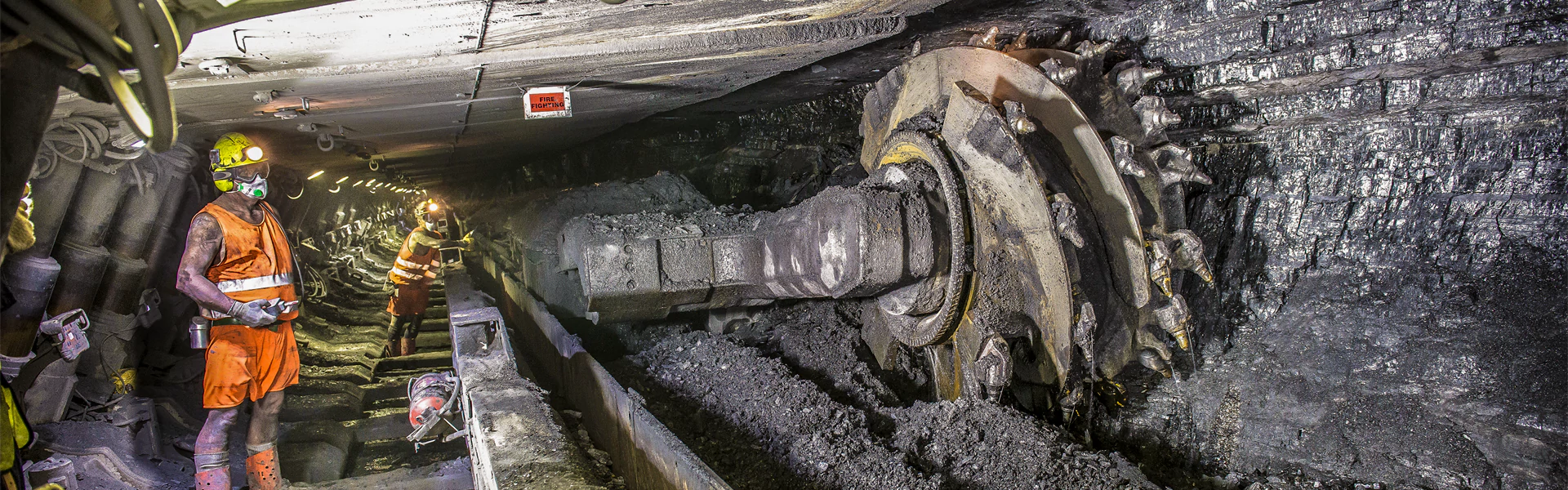

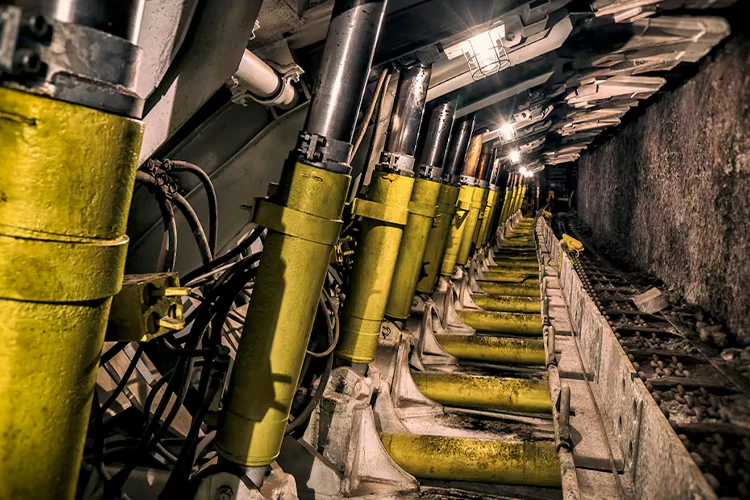

In the confined and high-risk environment of underground longwall mining, hydraulic reliability is synonymous with personnel safety.

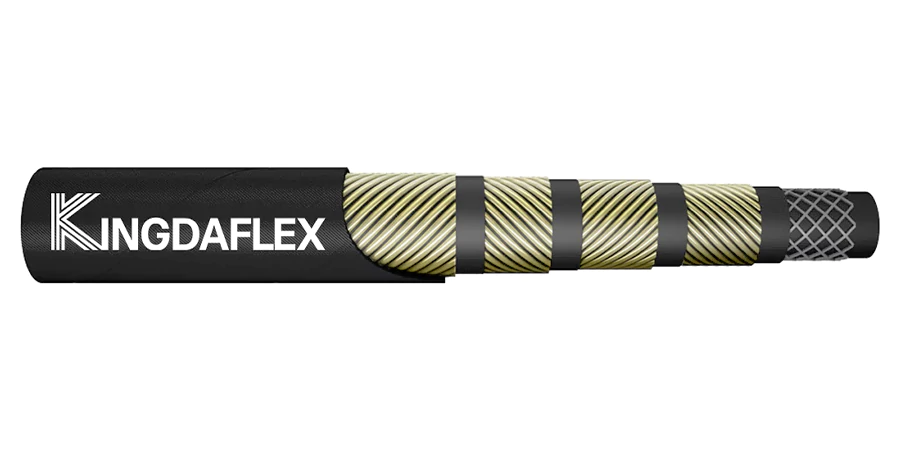

Our EN856 4SP and SAE 100R9 hoses are specifically designed for powered roof supports and armored face conveyors, featuring MSHA-certified flame-retardant covers that are essential for coal mine safety.
These hoses provide the dependable power needed to move heavy hydraulic chocks and conveyors, offering mine managers peace of mind through anti-static properties and self-extinguishing materials that prevent fire escalation in restricted underground spaces.

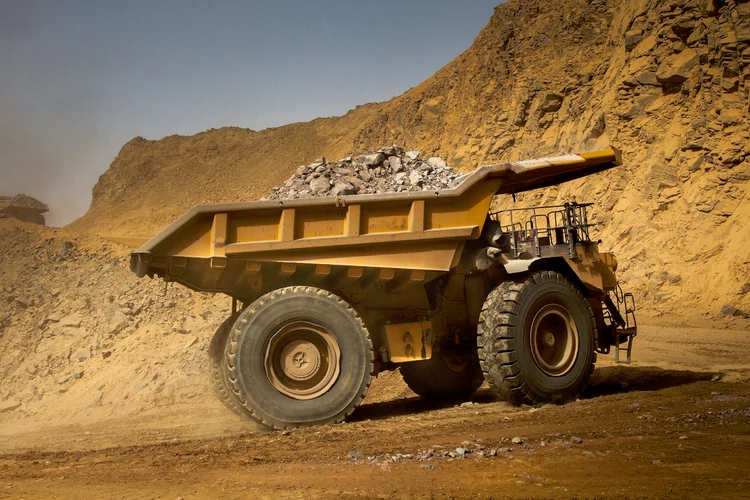

Massive haul trucks and off-highway vehicles depend on high-flow hydraulic systems to manage steering and the hoisting of heavy payloads.
Our SAE 100R12 and EN856 4SH hoses are the preferred choice for these heavy-duty steering cylinders and dump systems, where they handle the high-volume fluid transfer required for rapid cycle times.
By utilizing our precision-engineered hoses, fleet maintainers can enhance vehicle maneuverability and ensure that hoist systems operate at peak efficiency, preventing fluid contamination and ensuring that every load of ore is delivered safely and reliably.
Mining environments demand hydraulic solutions that exceed standard industrial specifications due to constant high-pressure surges and abrasive conditions. Our High-Pressure Spiral Series, including models such as SAE 100R12, R13, and R15, is specifically engineered for these rigors, utilizing four to six layers of high-tensile steel wire spirals to manage working pressures up to 420 Bar (6090 Psi).
These hoses are designed to endure the intense pressure shocks common in heavy-duty excavators and drilling rigs, ensuring continuous uptime and peak performance in deep-well or open-pit operations.
To combat the external threats of sharp rocks and debris, each hose features a specialized synthetic rubber cover that is highly resistant to abrasion, ozone, and weathering. This robust construction allows the hoses to maintain structural integrity in extreme temperatures ranging from -40℃ to 120℃.
An MSHA-certified hose has passed rigorous flame-resistance testing by the Mine Safety and Health Administration. In both underground and open-pit mining, hydraulic fluid is highly flammable; if a hose bursts near a heat source, it could fuel a fire.
MSHA-certified hoses feature a specialized outer cover that is self-extinguishing and anti-static, significantly reducing the risk of catastrophic fire and ensuring compliance with global mining safety regulations.

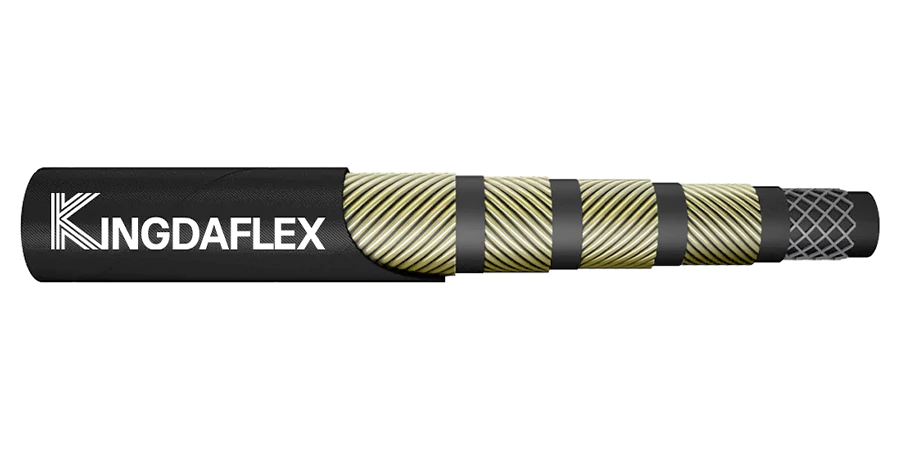

Although both are 4-wire spiral reinforced hoses, EN856 4SH is engineered for higher working pressures and better impulse resistance compared to EN856 4SP.
In a mining context, 4SP is typically used for medium-to-high pressure auxiliary lines, while 4SH is preferred for high-pressure hydraulic systems that experience frequent pressure spikes. Choosing the 4SH variant ensures better durability in heavy-cycle machinery.
Yes. Our mining-grade hoses are manufactured with a “Tough-Cover” synthetic rubber or UHMWPE coating. This material is specifically designed to be 10x more abrasion-resistant than standard ISO 6945 hoses.
It protects the steel wire reinforcement from being exposed by constant friction against rocks, metal chassis, or debris, which is the leading cause of premature hose failure in mining sites.
Mining equipment operates with high-frequency pressure pulses that fatigue the steel wire reinforcement. A standard hose is often rated for only 400,000 to 500,000 cycles. By reaching 1,000,000 impulse cycles at 133% working pressure, our hoses demonstrate double the fatigue life of standard products. This translates directly to reduced downtime and fewer emergency hose replacements during critical production shifts.
Absolutely. Mining sites vary from arctic conditions to high-heat underground environments. Our hoses are engineered to maintain flexibility and structural integrity within a temperature range of -40°C to +121°C (-40°F to +250°F).
The advanced EPDM/Nitrile rubber blend prevents the hose from becoming brittle in extreme cold or losing its sealing properties in high-heat hydraulic circuits.
