PVC Steel Wire Reinforced Hose

Applications: Widely used for sucking or discharging of water, oil, weak chemicals

and powders in industry, agriculture, factory, mining and building etc.

Tube: Non-toxic clear flexible PVC

Reinforcement: Strong and flexibility steel wire spiraled

Cover: non-toxic clear flexible PVC

Characteristics: Strong, abrasion resistant, corrosion and weather resistant, stability and flexibility under performance

Temperature range: -5ºC to +65 ºC

PVC SPIRAL STEEL WIRE HOSE (LIGHT DUTY)
Hose I.D. Hose O.D. Working    Pressure Burst   Pressure Weight Length
inch mm mm Bar Psi Bar Psi G/M M/Roll
3/8” 9 14 6 90 18 270 150 100
3/8” 10 15 6 90 18 270 160 100
1/2” 12 17 6 90 18 270 170 100
5/8” 15 21 6 90 18 270 250 100
3/4” 19 24 5 75 15 225 250 50
1” 25 29 4 60 12 180 220 50
1” 25 30 4 60 12 180 350 50
1-1/4″ 32 36 3 45 9 135 400 50
1-1/4″ 32 38 3 45 10 135 500 50
1-1/4″ 32 39 3 45 10 135 600 50
1-1/2″ 38 42 3 45 9 135 500 50
1-1/2″ 38 44 3 45 9 135 600 50
1-1/2″ 38 45 3 45 9 135 800 50
1-3/4″ 45 50 3 45 9 135 600 50
1-3/4″ 45 52 3 45 9 135 800 50
1-7/8″ 48 54 3 45 9 135 800 50
1-7/8″ 48 56 3 45 9 135 1000 50
2″ 50 56 3 45 9 135 800 50
2″ 50 57 3 45 9 135 1000 50
2″ 50 60 3 45 9 135 1400 50
2-5/16″ 58 65 2 30 6 90 1200 30
2-1/2″ 64 72 2 30 6 90 1500 30
2-1/2″ 64 75 2 30 6 90 2000 30
3″ 76 84 2 30 6 90 1600 30
3″ 76 87 2 30 6 90 2500 30
3-1/2″ 90 102 2 30 6 90 3000 20
4″ 102 112 2 30 6 90 2800 20
4″ 102 113 2 30 6 90 3000 20
PVC SPIRAL STEEL WIRE HOSE(HEAVY DUTY)
Hose I.D. Hose O.D. Working    Pressure Burst   Pressure Weight Length
inch mm mm Bar    Psi Bar    Psi G/M M/Roll
1/4” 6 11 8 120 24 360 115 100
5/16” 8 14 8 120 24 360 150 100
3/8” 9 15 8 120 24 360 170 100
3/8” 10 16 8 120 24 360 200 100
1/2” 12 18 8 120 24 360 220 100
5/8” 15 22 6 90 18 270 300 50
3/4” 19 26 6 90 18 270 360 50
3/4” 20 26 6 90 18 270 320 50
7/8″ 22 27 6 90 18 270 300 50
1” 25 33 5 75 15 225 540 50
1-1/4″ 32 40 5 75 15 225 700 50
1-1/2″ 38 48 5 75 15 225 1000 50
1-3/4″ 45 56 5 75 15 225 1300 50
1-7/8″ 48 59 5 75 15 225 1400 50
2″ 50 62 5 75 15 225 1600 50
2-5/16″ 58 69 4 60 12 180 1600 40
2-1/2″ 64 78 4 60 12 180 2500 30
3″ 76 90 4 60 12 180 3000 30
3-1/2″ 90 108 4 60 12 180 4500 20
4″ 102 116 4 60 12 180 4300 20
4-3/8″ 110 123 3 45 9 135 4000 20
4-5/8″ 117 133 3 45 9 135 5500 10
5″ 127 143 3 45 9 135 6000 10
5-1/2″ 140 156 3 45 9 135 6500 10
6″ 152 170 2 30 6 90 8500 10
6-5/16″ 160 176 2 30 6 90 8500 10
7″ 180 196 2 30 6 90 8500 10
8″ 200 224 2 30 6 90 12000 10
10″ 254 286 2 30 6 90 20000 10

Customize PVC Steel Wire Reinforced Hose to Meet Your Desire

Durability and Construction

We craft our PVC Steel Wire Reinforced Hoses with a clear, flexible PVC wall integrated with a high-strength spiral steel wire. This robust construction ensures exceptional durability, providing excellent resistance to kinking, crushing, and abrasion. It’s built to withstand the rigors of demanding industrial, agricultural, and construction environments, ensuring a long service life.

Versatility in Applications

We design these hoses for a wide array of versatile applications. They’re commonly used for suction and discharge in industries like agriculture (irrigation), construction (dewatering), and manufacturing (material handling). Their transparency also allows for visual flow monitoring, a valuable feature for many processes, making them highly adaptable.

Flexibility and Performance

Despite its strength, our hose offers remarkable flexibility, allowing for easy maneuverability and installation in tight spaces. The smooth interior promotes optimal flow efficiency, minimizing pressure drop and maximizing the transfer of various media, including water, oil, chemicals, and dry bulk materials, ensuring superior operational performance.

Chemical and Weather Resistance

Our PVC Steel Wire Reinforced Hoses exhibit excellent resistance to a broad range of chemicals, oils, and mild acids, preventing degradation and extending their lifespan. Additionally, they are formulated to resist UV radiation and various weather conditions, ensuring reliable performance both indoors and outdoors, even in challenging climates.

All PVC Steel Wire Reinforced Hose

pvc steel wire hose

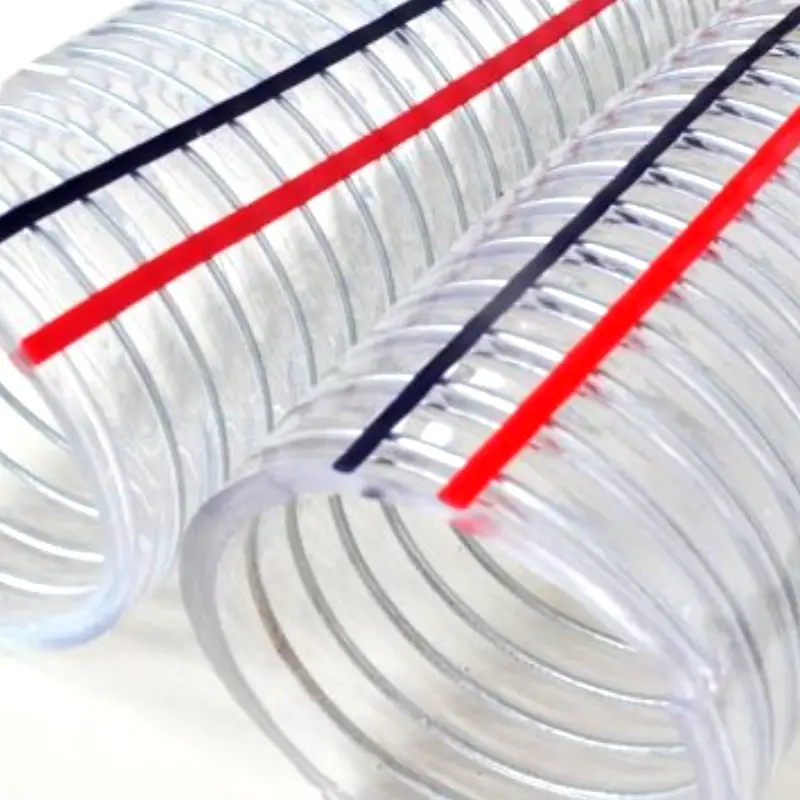

PVC steel wire reinforced hose

Kingdaflex provides PVC steel wire reinforced hoses, engineered for exceptional strength and flexibility. Made from clear PVC with an embedded steel wire helix, they resist kinking, crushing, and maintain shape under vacuum or pressure. Ideal for conveying water, oil, powders, and more, they are widely used in agriculture, construction, and various industrial applications, ensuring reliable and durable performance.

pvc steel spring reinforced clear vacuum hose

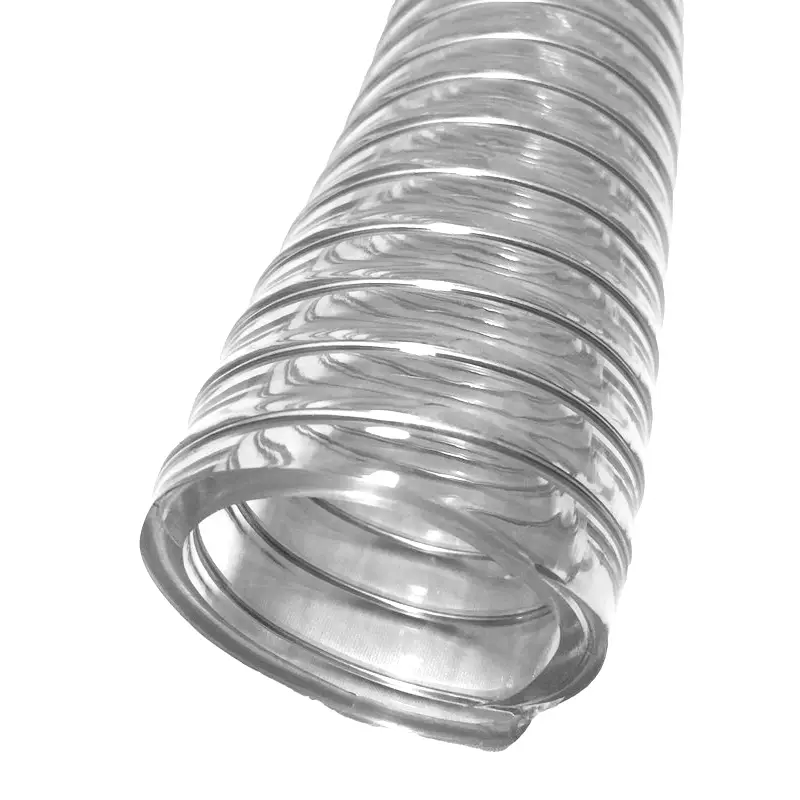

PVC steel spring reinforced clear vacuum hose

Kingdaflex offers clear PVC wire reinforced flexible hose. These hoses feature a transparent PVC body with an embedded steel spring helix, providing exceptional flexibility, kink and crush resistance, and full vacuum rating. Ideal for industrial vacuum lines, food and beverage dispensing, and material transfer, our hoses ensure clear flow visibility and long-lasting performance in various applications.

wire enforced smoothbore fda pvc hose

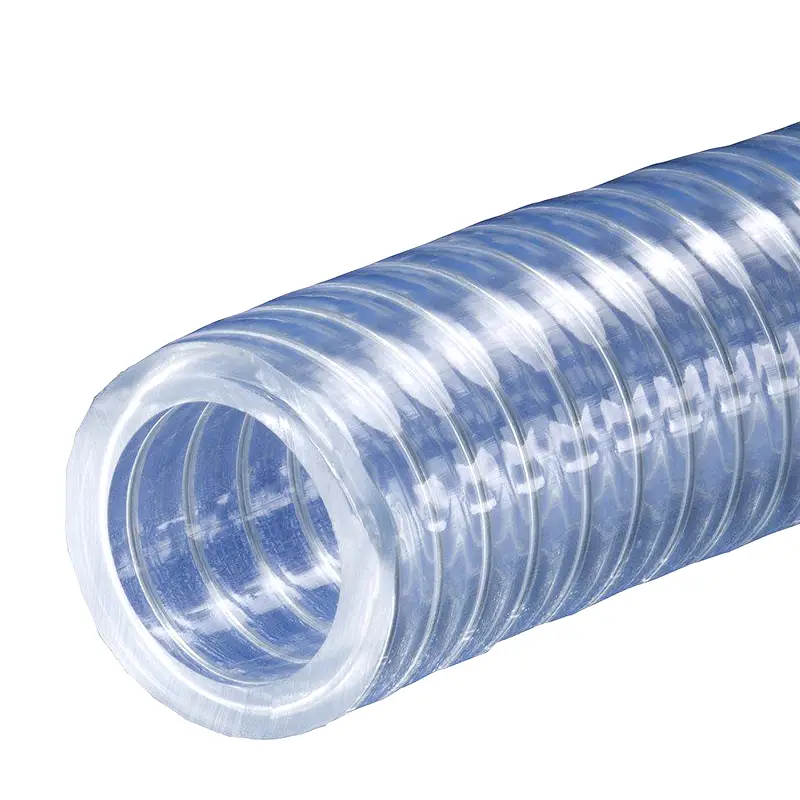

wire enforced smoothbore fda PVC hose

Kingdaflex offers wire-reinforced smoothbore FDA PVC hoses. These clear, flexible hoses feature an embedded steel wire helix for excellent vacuum and pressure capabilities, and superior kink resistance. Manufactured with non-toxic, food-grade materials, they are ideal for conveying food, beverages, pharmaceuticals, and deionized water, ensuring product purity and flow visibility.

pvc braided hose pipe

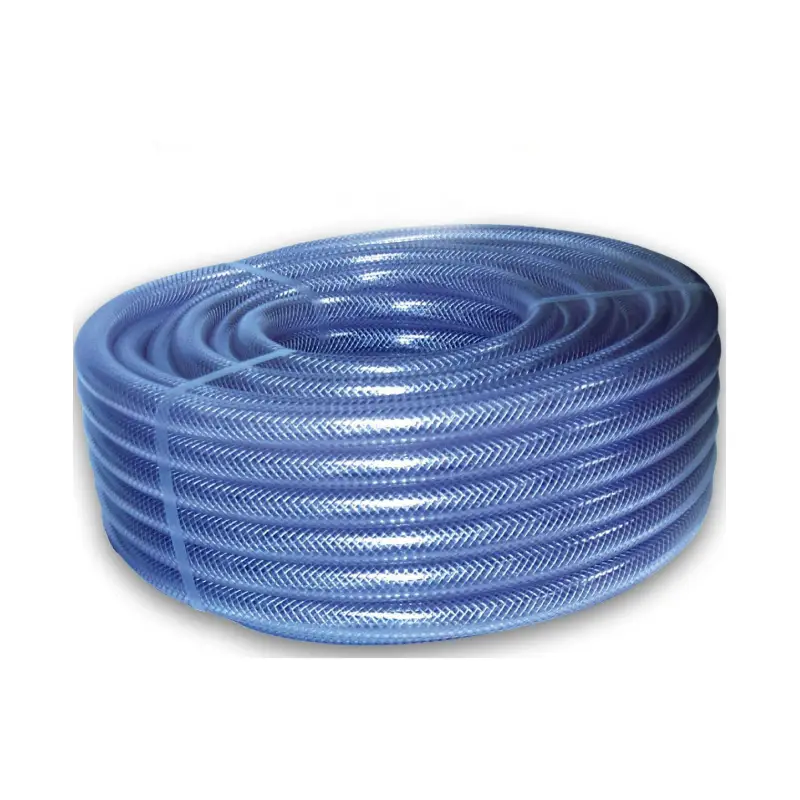

PVC braided hose pipe

Kingdaflex offers PVC Braided Hose Pipes, engineered for diverse applications. Featuring durable PVC with a strong polyester fiber reinforcement, our hoses provide excellent flexibility, kink resistance, and high-pressure capabilities. Ideal for water, air, and various fluid transfer in agriculture, industry, and home use. Lightweight, transparent, and built for long-lasting performance.

pvc suction hose pipe

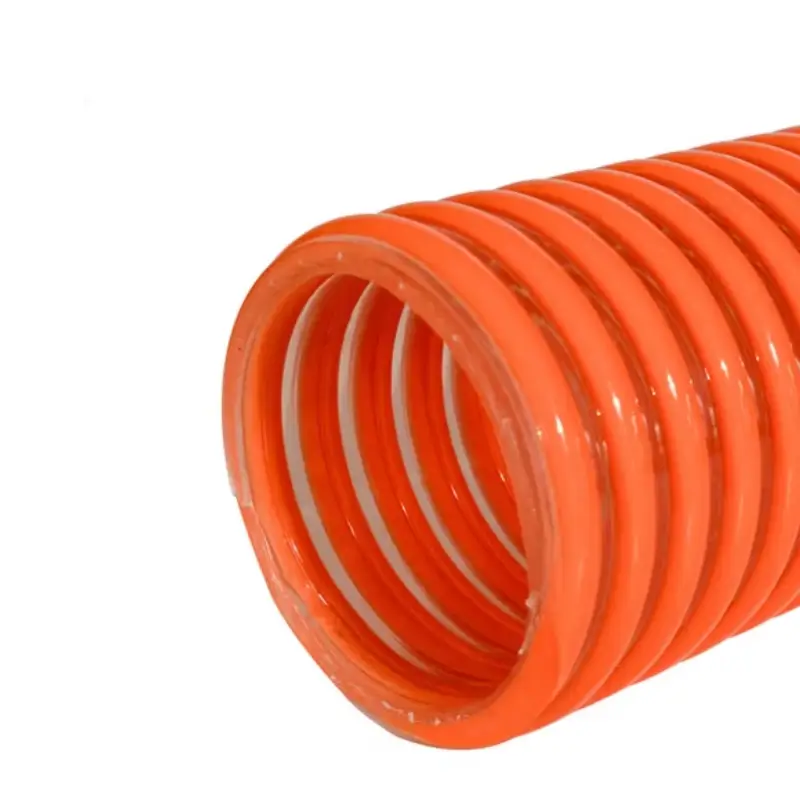

PVC suction hose pipe

Kingdaflex provides robust PVC Suction Hose Pipes, expertly designed for various applications. Our hoses, featuring a rigid PVC helix within flexible PVC, offer excellent vacuum resistance, durability against abrasion, and chemical inertness. Ideal for agriculture, construction, and industrial use, they efficiently convey water, oil, powders, and more, ensuring reliable and long-lasting performance.

What is PVC Steel Wire Reinforced Hose?

A PVC Steel Wire Reinforced Hose is a type of flexible tubing made from polyvinyl chloride (PVC) material, which has a high-strength spiral steel wire embedded within its walls.

This steel wire reinforcement significantly enhances the hose’s structural integrity, providing excellent resistance to kinking, crushing, and negative pressure (vacuum), while maintaining the inherent flexibility of PVC.

The transparent nature of many such hoses allows for visual monitoring of fluid flow, making them ideal for a wide range of suction and discharge applications in industries like agriculture, construction, manufacturing, and food processing, for conveying water, oil, powders, granules, and even some chemicals.

PVC Steel Wire Reinforced Hose benefits

PVC Steel Wire Reinforced Hoses offer a multitude of benefits, making them a preferred choice for diverse applications, especially in industrial settings here in Qingdao. Their unique construction, combining the inherent flexibility of PVC with the robust strength of an embedded steel wire helix, delivers an exceptional balance of performance characteristics.

This design ensures that the hose can withstand challenging conditions, resist deformation, and maintain efficient flow, ultimately contributing to operational reliability and cost savings.

Here are the key benefits:

  • Superior Kink and Crush Resistance: The integrated steel wire reinforcement provides outstanding structural integrity, preventing the hose from collapsing or kinking, even under vacuum or external pressure, ensuring continuous flow.

  • Excellent Flexibility: Despite its strength, the hose remains highly flexible, allowing for easy handling, routing around obstacles, and efficient coiling for storage, which is crucial for dynamic applications.

  • Visual Flow Monitoring: The transparent PVC material allows operators to visually inspect the flow of materials, quickly identify blockages, and monitor the transfer process, enhancing safety and efficiency.

  • Good Chemical and Abrasion Resistance: PVC offers inherent resistance to a wide range of chemicals, oils, and abrasive materials, extending the hose’s lifespan and suitability for various industrial fluids.

  • High Pressure and Vacuum Ratings: The steel wire reinforcement significantly boosts the hose’s ability to withstand both high positive pressures and strong negative pressures (vacuum), making it versatile for suction and discharge tasks.

  • Cost-Effectiveness: When considering its durability, versatility, and long service life, PVC steel wire reinforced hoses provide excellent long-term value, reducing the need for frequent replacements.

Where to use PVC Steel Wire Reinforced Hose?

PVC Steel Wire Reinforced Hoses are incredibly versatile and find widespread use across various sectors due to their strength and flexibility. They are primarily used for suction and discharge applications where a robust, clear hose is beneficial.

Specific applications include:

  • Agriculture: Ideal for irrigation systems, transferring water, fertilizers, and pesticides.

  • Construction: Employed for dewatering, concrete pumping, and general water supply on job sites.

  • Industry: Used in factories for conveying water, oils, powders, granules, and certain chemicals.

  • Food & Beverage: Food-grade versions are used for transferring liquids like milk, juice, and alcoholic beverages, thanks to their smooth, easy-to-clean inner surface.

  • Mining: Suitable for moving water, slurries, and other materials in challenging environments.

Why Choose PVC Steel Wire Reinforced Hose?

Choosing PVC Steel Wire Reinforced Hose offers a compelling combination of advantages, making it a highly practical and cost-effective solution for numerous fluid transfer needs.

Its unique construction, blending the flexibility of PVC with the strength of embedded steel wire, provides superior performance and longevity compared to many other hose types. This translates to increased operational efficiency and reduced replacement costs.

Here’s why you should choose PVC Steel Wire Reinforced Hose:

  • Exceptional Durability: The steel wire helix prevents kinking, crushing, and collapse, even under high vacuum or pressure, ensuring a longer service life.

  • High Flexibility: Despite its strength, it remains highly flexible, allowing for easy handling, installation, and routing in tight spaces.

  • Transparency: The clear PVC wall enables visual monitoring of flow, making it easy to detect blockages or identify the conveyed material.

  • Chemical Resistance: It exhibits good resistance to a wide range of chemicals, oils, and mild acids, preventing degradation and extending its lifespan.

  • Cost-Effectiveness: Offering a balance of performance and affordability, it presents a smart investment with excellent long-term value.

Our Manufacturing Capabilities

Our factory is compounded with ISO 9001:2015 standards.

We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.

The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.

If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
