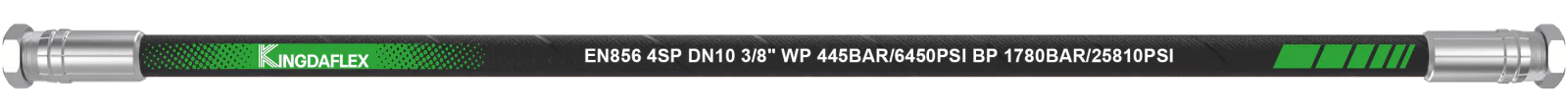

| Size | Inside (mm) | Braid (mm) | Outside (mm) | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | ||||||||
| DN | inch | mm | Dash | Min | Max | Min | Max | Min | Max | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 6 | 1/4″ | 6.4 | -4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 450 | 6525 | 1800 | 26100 | 150 | 0.60 | 20/40 |
| 10 | 3/8″ | 9.5 | -6 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 445 | 6450 | 1780 | 25810 | 180 | 0.70 | 20/40 |
| 13 | 1/2″ | 12.7 | -8 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 415 | 6020 | 1660 | 24070 | 230 | 0.80 | 20/40 |
| 16 | 5/8″ | 16.0 | -10 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 350 | 5075 | 1400 | 20300 | 250 | 0.98 | 20/40 |
| 19 | 3/4″ | 19.0 | -12 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 350 | 5075 | 1400 | 20300 | 300 | 1.45 | 20/40 |
| 25 | 1″ | 25.4 | -16 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 280 | 4060 | 1120 | 16240 | 340 | 2.05 | 20/40 |
| 32 | 1-1/4″ | 31.8 | -20 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 210 | 3045 | 840 | 12180 | 460 | 3.06 | 20/40 |
| 38 | 1-1/2″ | 38.1 | -24 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | 185 | 2680 | 740 | 10730 | 560 | 3.65 | 20/40 |
| 51 | 2″ | 50.8 | -32 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 165 | 2390 | 660 | 9570 | 660 | 4.85 | 20/40 |
●Black
