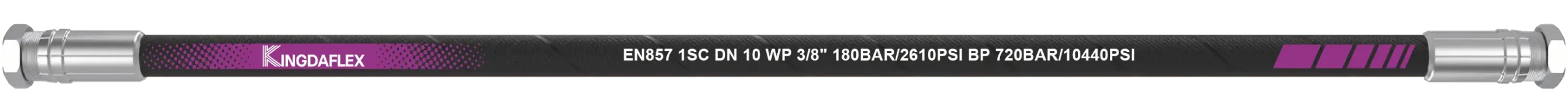

EN857 1SC | Hydraulic Hose

Tube: Oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: Oil, abrasion and weather resistant synthetic rubber
Temperature range: -40 ℃ to +100 ℃



DN Hose I.D Dash Size Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm dash mm mm bar psi bar psi mm kg/m meters
6 1/4 6.4 -04 10.2 13.5 225 3265 900 13050 75 0.18 50/100
8 5/16 7.9 -05 11.5 14.5 215 3120 860 12320 85 0.21 50/100
10 3/8 9.5 -06 13.6 16.9 180 2610 720 10440 90 0.28 50/100
13 1/2 12.7 -08 17.0 20.4 160 2320 640 9280 130 0.33 50/100
16 5/8 15.9 -10 20.4 23.0 130 1885 520 7540 150 0.41 50/100
19 3/4 19.0 -12 23.8 26.7 105 1525 420 6090 180 0.52 50/100
25 1 25.4 -16 31.3 34.9 88 1275 350 5075 230 0.78 50
