Material: Silicone, fiberglass.

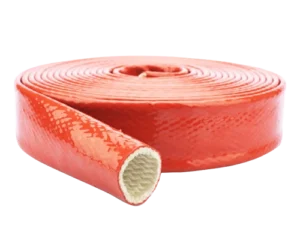

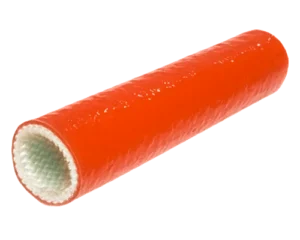

Key Features: This sleeve features a seamless, one-piece tubular design, providing the highest level of encapsulation against extreme heat, molten splash, moisture, and contaminants. Its construction ensures comprehensive and uniform protection for enclosed components.
Performance & Applications: Ideal for protecting shorter, straight runs of cables, hoses, and pipes where permanent, sealed protection is the priority. It is commonly used in automotive wiring harnesses and power generation units. It offers continuous protection up to 260°C (500°F) and can withstand short-term exposure to 1650°C (3000°F).
Structural Advantage: The absence of seams or fasteners enhances its overall durability and provides excellent insulation against energy loss. Installation requires threading the sleeve onto the component before connection.
Temperature Range: 260°C – 1650°C; Continuous operating temperature: 500°F (260°C); Max short term exposure: 3000°F (1650°C).

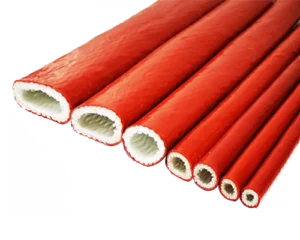

| Product | Inside dia. | Inside dia. | Wall thickne ss | Tolerance | Roll length | Ctn size | No./ctn | G.W. |
| mm | inch | mm | mm | m | cm | m | kg | |
   |
Φ6 | 1/4=PJ04 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 8.0 |
| Φ8 | 5/16=PJ05 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 9.5 | |
| Φ10 | 3/8=PJ06 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 11.0 | |
| Φ11 | 7/16=PJ07 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 11.5 | |
| Φ13 | 1/2=PJ08 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 12.0 | |
| Φ15 | 5/8=PJ10 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 19.0 | |
| Φ19 | 3/4=PJ12 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 25.0 | |
| Φ22 | 7/8=PJ14 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 26.0 | |
| Φ25 | 1=PJ16 | 2 | ±0.30 | 25 | 47*47*10 | 100 | 30.0 | |
| Φ29 | 1 1/8=PJ18 | 2 | ±0.30 | 25 | 47*47*10 | 50 | 19.0 | |
| Φ32 | 1 1/4=PJ20 | 2 | ±0.30 | 25 | 47*47*10 | 50 | 19.5 | |
| Φ35 | 1 3/8=PJ22 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 25.5 | |
| Φ38 | 1 1/2=PJ24 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 26.0 | |
| Φ40 | 1 3/5=PJ24 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 29.0 | |
| Φ41 | 1 5/8=PJ26 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 29.5 | |
| Φ45 | 1 3/4=PJ28 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 32.0 | |
| Φ48 | 1 7/8 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 32.5 | |
| Φ51 | 2=PJ32 | 3 | ±0.35 | 25 | 52*52*20 | 50 | 38.0 | |
| Φ55 | 2 1/5 | 3.5 | ±0.35 | 25 | 52*52*20 | 50 | 41.5 | |
| Φ57 | 2 1/4=PJ36 | 3.5 | ±0.35 | 25 | 52*52*20 | 50 | 42.0 | |
| Φ60 | 2 3/8 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 19.0 | |
| Φ64 | 2 1/2=PJ40 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 20.5 | |
| Φ65 | 2 3/5 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 21.0 | |
| Φ70 | 2 3/4=PJ44 | 3.5 | ±0.40 | 20 | 52*52*20 | 20 | 24.5 | |
| Φ76 | 3=PJ48 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 25.0 | |
| Φ80 | 3 1/5 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 27.5 | |
| Φ83 | 3 1/4=PJ52 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 28.0 | |
| Φ85 | 3 3/8 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 28.5 | |
| Φ89 | 3 1/2=PJ56 | 4 | ±0.50 | 20 | 52*52*20 | 20 | 30.5 | |
| Φ90 | 3 9/16 | 4 | ±0.50 | 20 | 52*52*20 | 20 | 31.0 | |
| Φ95 | 3 3/4=PJ60 | 4 | ±0.50 | 20 | 52*52*20 | 20 | 33.0 | |
| Φ102 | 4=PJ64 | 5 | ±0.50 | 10 | 52*52*20 | 10 | 18.5 | |
| Φ110 | 4 1/3 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 19.0 | |
| Φ114 | 4 1/2=PJ72 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 20.0 | |
| Φ120 | 4 4/5 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 21.5 | |
| Φ127 | 5=PJ80 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 24.0 | |
| Φ150 | 6=PJ96 | 6 | ±0.50 | 10 | 54*54*20 | 10 | 30.5 |
