Applications:The product is used for conveying water, oil, gas in the factory, farm, building and family.The hose used for foodstuffs is made of special materials.It is light, flexible, durable, nontoxic without odor, transparent.It can also be used for conveying milk, beverage, distilled liquor, beer, jam and other foods in vending machines, ice machine and refrigerators, etc.
Characteristics:It is flexible, transparent, durable, nontoxic, odorless, antirosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.
Temperature range: -5ºC to +65 ºC

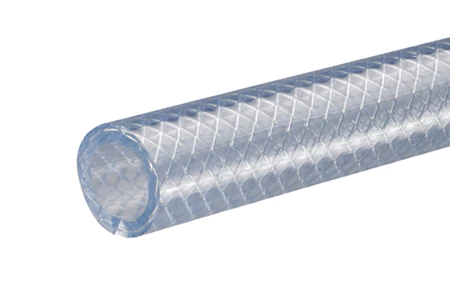

PVC FIBER HOSE(LIGHT DUTY)
Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Weight | Length | |||
inch | mm | mm | Bar | Psi | Bar | Psi | G/M | M/Roll |
5/32” | 4 | 8 | 10 | 150 | 50 | 750 | 49 | 100 |
13/64” | 5 | 9 | 10 | 150 | 30 | 450 | 57 | 100 |
1/4” | 6 | 10 | 10 | 150 | 40 | 600 | 65 | 100 |
5/16” | 8 | 12 | 10 | 150 | 40 | 600 | 82 | 100 |
3/8” | 10 | 14 | 9 | 135 | 35 | 525 | 98 | 100 |
1/2” | 12 | 16 | 7 | 105 | 20 | 300 | 115 | 50 |
1/2” | 12 | 17 | 8 | 120 | 24 | 360 | 150 | 50 |
1/2” | 13 | 17 | 7 | 105 | 20 | 300 | 125 | 50 |
5/8” | 15 | 19 | 6 | 90 | 20 | 300 | 140 | 50 |
5/8” | 16 | 20 | 6 | 90 | 20 | 300 | 150 | 50 |
5/8” | 16 | 21 | 7 | 105 | 21 | 315 | 190 | 50 |
3/4” | 19 | 23 | 4 | 60 | 12 | 180 | 170 | 50 |
3/4” | 19 | 24 | 4 | 60 | 12 | 180 | 220 | 50 |
3/4” | 20 | 24 | 4 | 60 | 12 | 180 | 180 | 50 |
7/8″ | 22 | 27 | 4 | 60 | 12 | 180 | 250 | 50 |
1” | 25 | 29 | 3 | 45 | 9 | 135 | 220 | 50 |
1” | 25 | 30 | 4 | 60 | 12 | 180 | 281 | 50 |
1-1/4” | 32 | 38 | 3 | 45 | 10 | 150 | 530 | 40 |
1-1/2” | 38 | 45 | 3 | 45 | 10 | 150 | 590 | 40 |
1-3/4” | 45 | 55 | 3 | 45 | 10 | 150 | 1020 | 30 |
2” | 51 | 59 | 3 | 45 | 10 | 150 | 1010 | 30 |
PVC FIBER HOSE (HEAVY DUTY)
Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | Weight | Length | |||
inch | mm | mm | Bar | Psi | Bar | Psi | G/M | M/Roll |
13/64” | 5 | 10 | 12 | 180 | 40 | 600 | 76 | 100 |
1/4” | 6 | 11 | 12 | 180 | 36 | 540 | 87 | 100 |
5/16” | 8 | 13 | 10 | 150 | 30 | 450 | 105 | 100 |
3/8” | 10 | 15 | 10 | 150 | 30 | 450 | 130 | 100 |
1/2” | 12 | 18 | 9 | 135 | 27 | 405 | 185 | 100 |
5/8” | 15 | 22 | 8 | 120 | 24 | 360 | 230 | 50 |
3/4” | 19 | 25 | 6 | 90 | 18 | 270 | 270 | 50 |
7/8″ | 22 | 28 | 5 | 75 | 15 | 225 | 305 | 50 |
1” | 25 | 31 | 5 | 75 | 15 | 225 | 340 | 50 |
1-1/4” | 32 | 40 | 4 | 60 | 12 | 180 | 590 | 40 |
1-1/2” | 38 | 46 | 4 | 60 | 12 | 180 | 690 | 40 |
1-3/4” | 45 | 56 | 4 | 60 | 12 | 180 | 1140 | 30 |
2” | 51 | 62 | 4 | 60 | 12 | 180 | 1380 | 30 |
2-1/2” | 64 | 78 | 4 | 60 | 12 | 180 | 2030 | 30 |
3” | 76 | 92 | 4 | 60 | 12 | 180 | 2750 | 30 |
Our factory is compounded with ISO 9001:2015 standards.
We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.
The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.
If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
