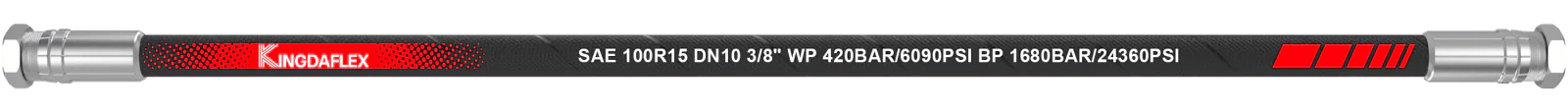

SAE 100R15 | Hydraulic Hose

Tube: Oil resistant synthetic rubber

Reinforcement: Four or six high tensile steel wire spiral layers

Cover: Abrasion, ozone, and weather resistant synthetic rubber

Temperature: -40°C to +120°C (-55°C to +125°C)

Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

Description

DN INCH SIZE SAE DASH SIZE Inside (mm) Braid (mm) Outside (mm) Working Pressure Burst Pressure Bend Radius Weight Length
mm inch mm Dash Min Max Max Max Bar Psi Bar Psi mm kg/m M
10 3/8″ 9.5 -6 9.3 10.1 20.3 23.3 420 6090 1680 24360 150 0.80 20/40
13 1/2″ 12.7 -8 12.3 13.5 24.0 26.8 420 6090 1680 24360 200 0.90 20/40
19 3/4″ 19.0 -12 18.6 19.8 32.9 36.1 420 6090 1680 24360 265 1.60 20/40
25 1″ 25.4 -16 25.0 26.4 38.9 42.9 420 6090 1680 24360 330 2.25 20/40
32 1-1/4″ 31.8 -20 31.4 33.0 48.4 51.5 420 6090 1680 24360 445 3.95 20/40
38 1-1/2″ 38.1 -24 37.7 39.3 56.3 59.6 420 6090 1680 24360 530 5.25 20/40
51 2″ 50.8 -32 50.4 52.0 72.4 75.6 420 6090 1680 24360 680 6.60 20/40
