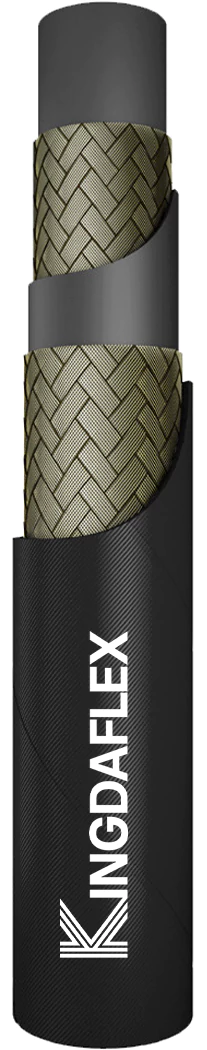

SAE 100R16 | Hydraulic Hose

Applications

Internal Hose:

Oil resistant synthetic rubber.

Reinforcement:

Two high tensile steel wire braids.

Cover:

Oil and weather resistant synthetic rubber, Wrapped/Smooth cover.

Application:

Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

Temperature:

-40°C to +100°C (-55°C to +100°C, intermittent 120°C).

Working Pressure:

165 – 400 Bar /2390 – 5800 Psi.


Size				Inside (mm)		Braid (mm)	Outside (mm)	Working Pressure		Burst Pressure		Bend Radius	Weight	Length
DN	inch	mm	Dash	Min	Max	Max	Max	Bar	Psi	Bar	Psi	mm	kg/m	M
6	1/4″	6.4	-4	6.2	7.0	12.3	13.0	420	6000	1680	24000	50	0.26	50/100
8	5/16″	7.9	-5	7.7	8.5	13.3	14.5	375	5500	1500	22000	55	0.31	50/100
10	3/8″	9.5	-6	9.3	10.1	15.9	16.8	350	5000	1400	20000	65	0.44	50/100
13	1/2″	12.7	-8	12.3	13.5	19.0	20.6	310	4500	1240	18000	90	0.50	50/100
16	5/8″	15.9	-10	15.5	16.7	22.6	23.2	280	4000	1120	16000	100	0.60	50/100
19	3/4″	19.0	-12	18.6	19.8	26.3	27.9	240	3500	960	14000	120	0.82	50/100
25	1″	25.4	-16	25.0	26.4	34.0	35.5	210	3000	840	12000	150	1.27	50

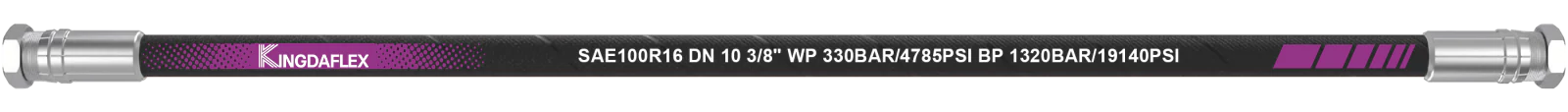

Marking / Layline (Printing. Ink, Embossed)

Cover Type:

Wrapped, Smooth

Packing Type:

Roll, Pallet, Reel

Outward Appearance:

●Black ●Blue ●Red
