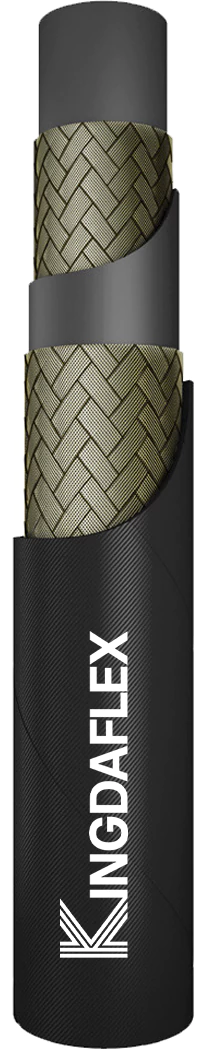

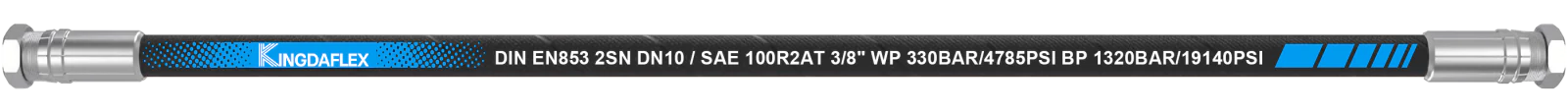

SAE 100R2AT / DIN EN853 2SN | Hydraulic Hose

Tube: Oil resistant synthetic rubber

Reinforcement: Two high tensile steel wire braids

Cover: Oil and weather resistant synthetic rubber

Temperature: -40°C to +100°C

Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

DN

Size SAE Inside

Ø mm

Braid

Ø mm

Outside

Ø mm

Working

Pressure

Burst

Pressure

Bend Radius Weight

Length

Inch mm Dash Min Max Min Max Max Bar Psi Bar Psi mm Kg/m m
5 3/16″ 5 -03 4.6 5.4 10.6 11.6 14.1 414 6020 1650 23295 90 0.32

50/100

6

1/4″ 6.3 -04 6.2 7.0 12.1 13.3 15.7 400 5800 1600 23200 100 0.36 50/100
8 5/16″ 8 -05 7.7 8.5 13.7 14.9 17.3 360 5075 1400 20300 115 0.45

50/100

10

3/8″ 10 -06 9.3 10.1 16.1 17.3 19.7 331 4785 1320 19140 130 0.54 50/100
13 1/2″ 12.5 -08 12.3 13.5 19.0 20.6 23.0 276 3990 1100 15950 180 0.68

50/100

16

5/8″

16 -10 15.5 16.7 22.2 23.8 26.2 250 3625 1000 14500 200 0.80 50/100
19 3/4″ 19 -12 18.6 19.8 26.2 27.8 30.1 215 3120 850 12325 240 0.94

50/100

25

1″ 25 -16 25.0 26.4 34.1 35.7 39.9 165 2390 650 9425 300 1.35 50
32 1 1/4″ 31.5 -18 31.4 33.0 43.3 45.7 49.5 125 1810 500 7250 420 2.15

20/40

38

1 1/2″ 38 -20 37.7 39.3 49.6 52.0 55.9 90 1305 360 5220 500 2.65 20/40
51 2″ 51 -22 50.4 52.0 62.3 64.7 68.6 80 1160 320 4640 630 3.50

20/40

Our Manufacturing Capabilities

Our factory is compounded with ISO 9001:2015 standards.

We value quality in all of our processes. We ensure that our hydraulic hoses can withstand the toughest environmental stresses.

The entire production link of our hydraulic hose takes place in our factory, to ensure the quality of each rubber tube, and a 99.99% on-time delivery rate.

If you have special requirements for the performance of rubber hose, you can contact us, we provide a variety of customized services.
