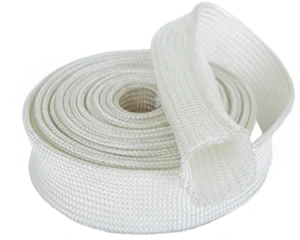

Material: High-silica glass fiber.
Key Features: This sleeve is primarily a High Silica (or High-Temperature) Fiberglass Braided Sleeve, often impregnated or coated for enhanced performance. It is not a standard silicone rubber-coated sleeve for lower temperature ranges. Its core characteristic is an extremely high continuous operating temperature of 400°C – 500°C and a breakdown voltage of 600V-800V.
Performance & Applications: Designed specifically for insulating conductors, bus bars, and component leads in high-temperature environments where both thermal and electrical protection are critical. It is flame-retardant and maintains flexibility at high temperatures.

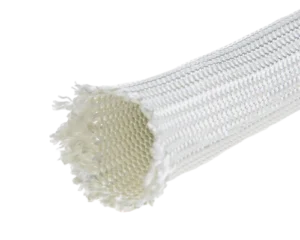

Structural Advantage: The braided structure from high-silica glass fibers provides exceptional thermal stability and dielectric strength, making it suitable for protecting electrical assemblies in furnaces, high-temperature appliances, and specialized industrial equipment.
Temperature Range: 400°C – 500°C.
| Product | Part No. | I.D | Wall Thickness | Weight |
| mm | mm | g/m | ||
 |
KD-5 | 5.0±1.0 | 0.7±0.2 | 12±5 |
| KD-8 | 8.0±1.6 | 1.6±0.2 | 18±5 | |
| KD-10 | 10.0±2.0 | 1.6±0.2 | 50±5 | |
| KD-13 | 13.0±2.1 | 1.6±0.2 | 58±5 | |
| KD-15 | 15.0±3.0 | 1.6±0.2 | 65±10 | |
| KD-20 | 20.0±4.0 | 1.6±0.2 | 85±10 | |
| KD-25 | 25.0±5.0 | 1.6±0.2 | 90±10 | |
| KD-30 | 30.0±6.0 | 1.6±0.2 | 125±13 | |
| KD-35 | 35.0±7.0 | 1.6±0.2 | 140±14 | |
| KD-38 | 38.0±8.0 | 1.6±0.2 | 156±15 | |
| KD-40 | 40.0±10.0 | 1.6±0.2 | 170±17 | |
| KD-50 | 50.0±10.0 | 1.6±0.2 | 180±20 | |
| KD-51 | 51.0±10.0 | 1.6±0.2 | 190±20 | |
| KD-64 | 64.0±10.0 | 1.6±0.2 | 225±26 | |
| KD-76 | 76.0±10.0 | 1.6±0.2 | 305±31 | |
| KD-80 | 80.0±10.0 | 1.6±0.2 | 320±32 | |
| KD-86 | 86.0±10.0 | 1.6±0.2 | 345±35 | |
| KD-90 | 90.0±10..0 | 1.6±0.2 | 360±36 | |
| KD-96 | 96.0±10.0 | 1.6±0.2 | 380±38 | |
| KD-102 | 102..0±10.0 | 1.6±0.2 | 412±42 | |
| KD-120 | 120.0±10.0 | 1.6±0.2 | 480±48 |
