Steam Hose 1W

Applications

steam2
steam
water
Internal Hose:
Black, smooth, Resistance to high temperature EPDM synthetic rubber.
资源 7
Reinforcement:
one layer of textile/cotton fiber braid.
Cover:
EPDM rubber, high temperature and weathering resistant, Wrapped/Smooth cover.
资源 5

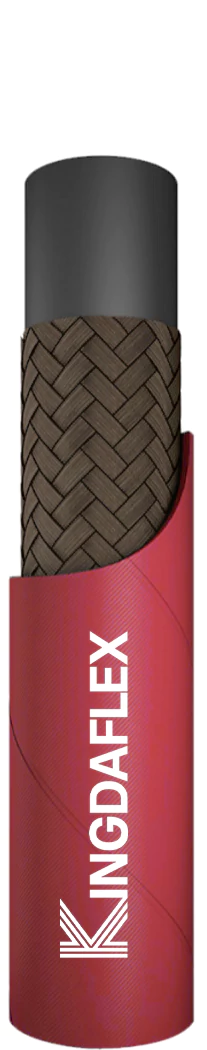

Steam Hose 1W Kingdaflex
ReliaBull
资源 4Temperature
Application:
–
资源 3Temperature
Temperature:
-40°C to +230°C.
资源 2Working Pressure
Working Pressure:
10 Bar / 150 Psi.
Get a Quote
Size Inside Outside Working Pressure Burst Pressure Bend Radius length
Size Inside Outside Working Pressure Burst Pressure Bend Radius Length
DN inch mm mm mm Bar Psi Bar Psi mm M
10 3/8″ 9.5 10 17.0 10 150 100 1500 130 100
13 1/2″ 12.7 13 22.0 10 150 100 1500 180 100
16 5/8″ 16.0 16 26.0 10 150 100 1500 205 100
19 3/4″ 19.0 19 29.0 10 150 100 1500 240 100
25 1″ 25.4 25 34.0 10 150 100 1500 300 100
32 1-1/4″ 31.8 32 43.5 10 150 100 1500 420 60
38 1-1/2″ 38.1 38 50.0 10 150 100 1500 500 60
51 2″ 50.8 51 62.0 10 150 100 1500 630 60

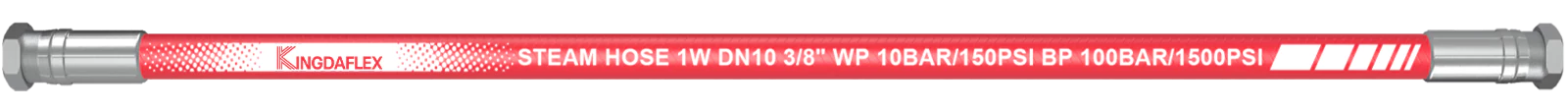

Marking / Layline (Printing, Ink, Embossed)

Steam Hose 1W
Cover Type
Cover Type:
Wrapped, Smooth
Packing Type
Packing Type:
Roll, Pallet, Reel
Outward Appearance
Outward Appearance:

●Black  ●Red

Certificate

ISO9001
ISO9001
ISO14001
ISO14001
ISO45001
ISO45001
MSHA
MSHA
BV
BV
CE
CE
SGS
SGS
GOST
GOST
DIN
DIN
SAE
SAE
MA
MA
