Material: Silicone, fiberglass.

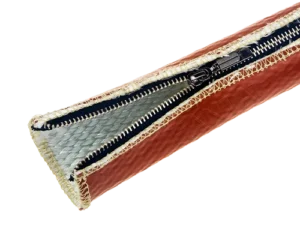

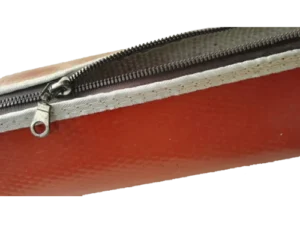

Key Features: This sleeve incorporates a high-temperature zipper with brass teeth, enabling rapid installation and removal without disassembling equipment or threading wires. It provides exceptional protection against molten splash and continuous high temperatures.
Performance & Applications: The optimal solution for large, complex systems requiring frequent component checks or replacements, such as in steelworks and ceramics plants. It significantly reduces downtime and labor costs. Its performance withstands continuous exposure to 260°C (500°F) and high-temperature spikes.
Structural Advantage: The zipper closure offers protection levels close to tube-style sleeves but with vastly improved maintenance access. It is perfect for bundling wires, hoses, and cables in hard-to-reach areas.
Temperature Range: 260°C – 1650°C; Continuous operating temperature: 500°F (260°C); Max short term exposure: 3000°F (1650°C).
| Product | Inside dia. | Inside dia. | Wall thickne ss | Tolerance | Roll length | Ctn size | No./ctn | G.W. |
| mm | inch | mm | mm | m | cm | m | kg | |
 |
Φ6 | 1/4=PJ04 | 1.5 | ±0.15 | 50 | 47*47*10 | 100 | 22.0 |
| Φ8 | 5/16=PJ05 | 1.5 | ±0.15 | 50 | 47*47*10 | 100 | 24.5 | |
| Φ10 | 3/8=PJ06 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 28.0 | |
| Φ11 | 7/16=PJ07 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 29.5 | |
| Φ13 | 1/2=PJ08 | 2 | ±0.20 | 25 | 47*47*10 | 100 | 30.2 | |
| Φ16 | 5/8=PJ10 | 2 | ±0.20 | 25 | 47*47*10 | 50 | 16.5 | |
| Φ19 | 3/4=PJ12 | 2 | ±0.20 | 25 | 47*47*10 | 50 | 20.4 | |
| Φ22 | 7/8=PJ14 | 2 | ±0.20 | 25 | 47*47*10 | 50 | 21.5 | |
| Φ25 | 1=PJ16 | 2 | ±0.30 | 25 | 47*47*10 | 50 | 24.5 | |
| Φ29 | 1 1/8=PJ18 | 2 | ±0.30 | 25 | 47*47*10 | 50 | 25.5 | |
| Φ32 | 1 1/4=PJ20 | 2 | ±0.30 | 25 | 47*47*10 | 50 | 27.5 | |
| Φ35 | 1 3/8=PJ22 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 28.5 | |
| Φ38 | 1 1/2=PJ24 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 34.0 | |
| Φ40 | 1 3/5=PJ24 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 34.5 | |
| Φ41 | 1 5/8=PJ26 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 35.0 | |
| Φ45 | 1 3/4=PJ28 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 36.0 | |
| Φ48 | 1 7/8 | 3 | ±0.30 | 25 | 47*47*15 | 50 | 37.0 | |
| Φ51 | 2=PJ32 | 3 | ±0.35 | 25 | 52*52*20 | 50 | 38.2 | |
| Φ55 | 2 1/5 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 20.5 | |
| Φ57 | 2 1/4=PJ36 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 21.0 | |
| Φ60 | 2 3/8 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 23.5 | |
| Φ64 | 2 1/2=PJ40 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 24.0 | |
| Φ65 | 2 3/5 | 3.5 | ±0.35 | 20 | 52*52*20 | 20 | 24.5 | |
| Φ70 | 2 3/4=PJ44 | 3.5 | ±0.40 | 20 | 52*52*20 | 20 | 27.5 | |
| Φ76 | 3=PJ48 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 28.2 | |
| Φ80 | 3 1/5 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 32.5 | |
| Φ83 | 3 1/4=PJ52 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 33.2 | |
| Φ85 | 3 3/8 | 4 | ±0.40 | 20 | 52*52*20 | 20 | 33.8 | |
| Φ89 | 3 1/2=PJ56 | 4 | ±0.50 | 10 | 52*52*20 | 10 | 18.5 | |
| Φ90 | 3 9/16 | 4 | ±0.50 | 10 | 52*52*20 | 10 | 19.0 | |
| Φ95 | 3 3/4=PJ60 | 4 | ±0.50 | 10 | 52*52*20 | 10 | 19.5 | |
| Φ102 | 4=PJ64 | 5 | ±0.50 | 10 | 52*52*20 | 10 | 20.2 | |
| Φ110 | 4 1/3 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 22.0 | |
| Φ114 | 4 1/2=PJ72 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 23.8 | |
| Φ120 | 4 4/5 | 5 | ±0.50 | 10 | 54*54*20 | 10 | 26.8 |
