What Is SAE 100R5 Hydraulic Hose?

SAE 100R5 Hydraulic Hose
SAE 100R5 Hydraulic Hose

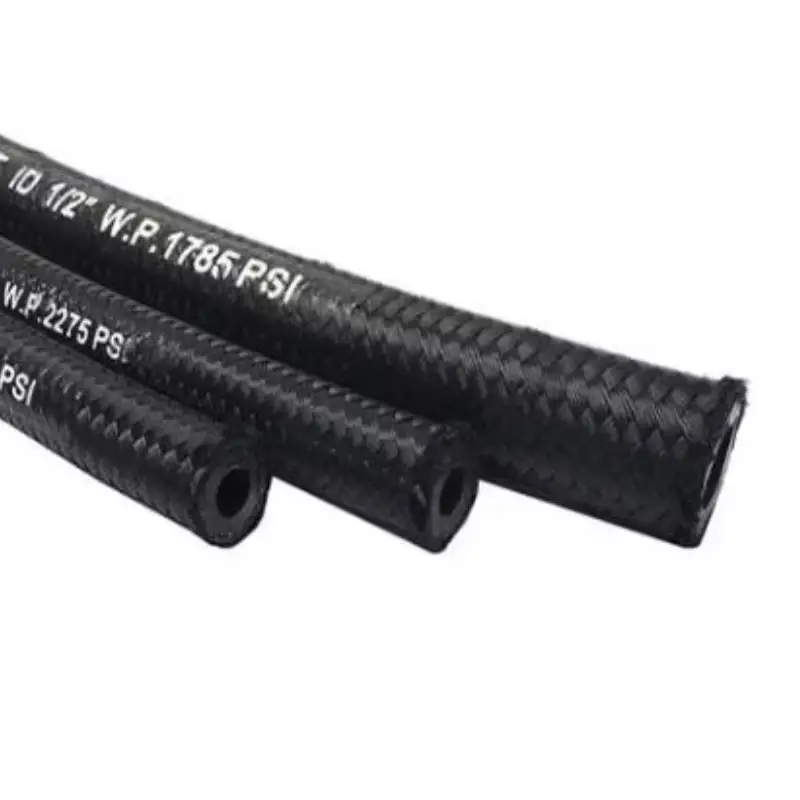

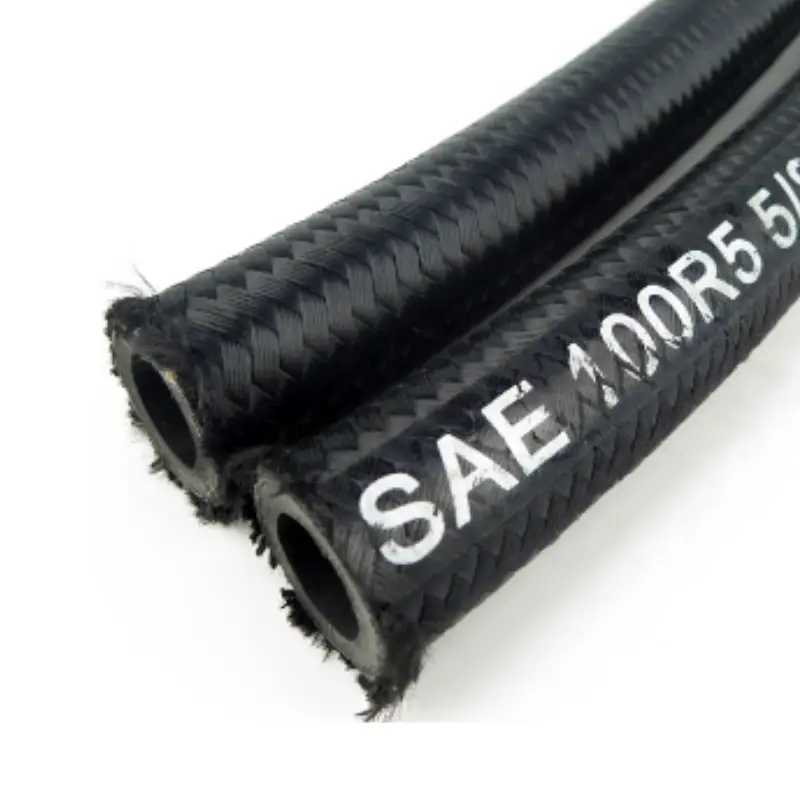

SAE 100R5 hydraulic hose is the fabric covered hydraulic hose, compared with other hydraulic hoses. This textile covered hydraulic hose can be used for hydraulic fluid oil conveyance in medium pressure.

SAE 100R5 hydraulic hose is recommended for air brake, fuel, grease lines, used to convey the hydraulic fluids, including petroleum-based fluids on the hydraulic line.

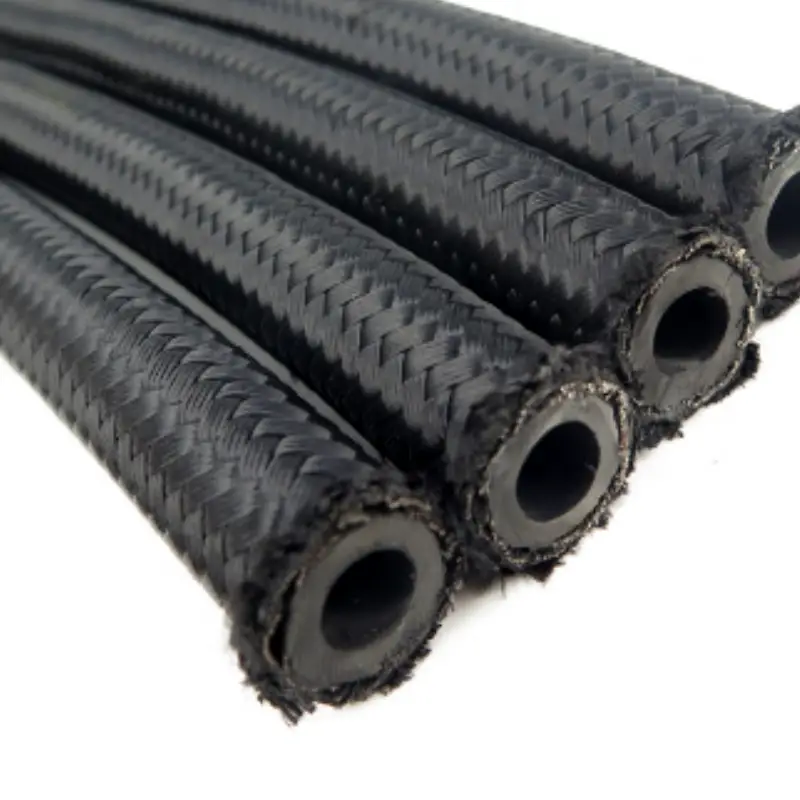

Fabric Covered Hydraulic Hose

SAE 100R5 hydraulic hose structure
SAE 100R5 hydraulic hose structure

Let’s see the SAE 100R5 hydraulic hose structure:

  • Inner tube: oil-resistant synthetic rubber material.
  • Reinforcement: One-wire braided layer as the reinforcement to add strength and flexibility.

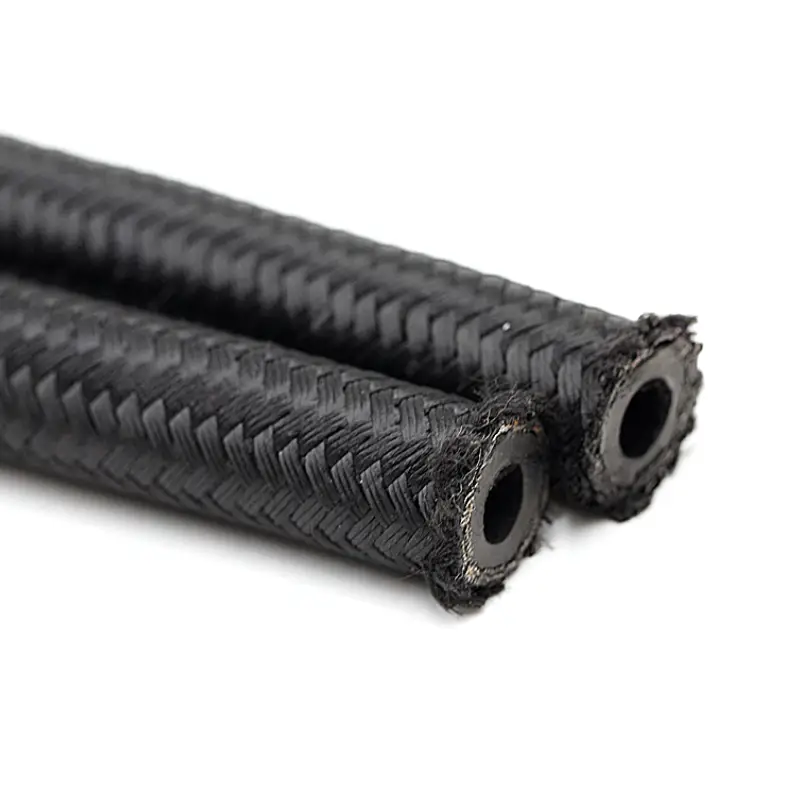

  • Outer cover: braided textile fabric to make the outer cover, impregnated textile braid

Compared with other hydraulic hoses, this hydraulic hose is covered by braided textile fiber, this is the biggest difference.

100R5 Hydraulic Specs

This is the SAE 100R5 hydraulic hose specification chart, and you can find the basically important specs reading from this table, including size, working pressure, burst pressure, bend radius, weight, and length.

DN

Size Inside

Ø mm

Outside

Ø mm

Working

Pressure

Burst

Pressure

Bend Radius Weight

Length

mm

inch Dash Min Max Min Max Bar Psi Bar Psi mm Kg/m

m

5

5 3/16 -4 4.8 5.5 12.7 13.7 210 3045 840 12180 75 0.24 50/100
6 6.3 1/4 -5 6.4 7.2 14.3 15.3 210 3045 840 12180 85 0.29

50/100

8

8 5/16 -6 7.9 8.7 16.7 17.6 157 2276 620 8990 100 0.36 50/100
11 11 13/32 -8 10.3 11.1 18.9 20.0 140 2030 560 8120 115 0.48

50/100

13

13 1/2 -10 12.7 13.7 22.8 24.0 122 1769 480 6960 140 0.55 50/100
16 16 5/8 -12 15.9 17.0 26.8 28.0 105 1522 420 6090 165 0.65

50/100

22

22 7/8 -16 22.2 23.3 30.6 32.2 56 812 220 3090 185 0.69 20/40
28 29 1 1/8 -20 28.6 29.8 37.3 38.9 43 623 170 2494 230 0.84

20/40

35

35 1 3/8 -24 34.9 36.1 43.7 45.2 35 507 140 2030 265 1.03 20/40
46 46 1 13/16 -32 46.0 47.2 55.2 57.6 24 348 96 1392 335 1.26

20/40

60

60 2 3/8 -40 60.3 61.9 71.8 74.2 24 348 96 1392 610 2.0 20/40
75 76 3 -78 76.2 77.8 89.3 91.7 14 203 56 812 840 3.0

20/40

100R5 Braided Textile Hydraulic Hose Application

100r5 textile covered hydraulic hose
100r5 textile covered hydraulic hose

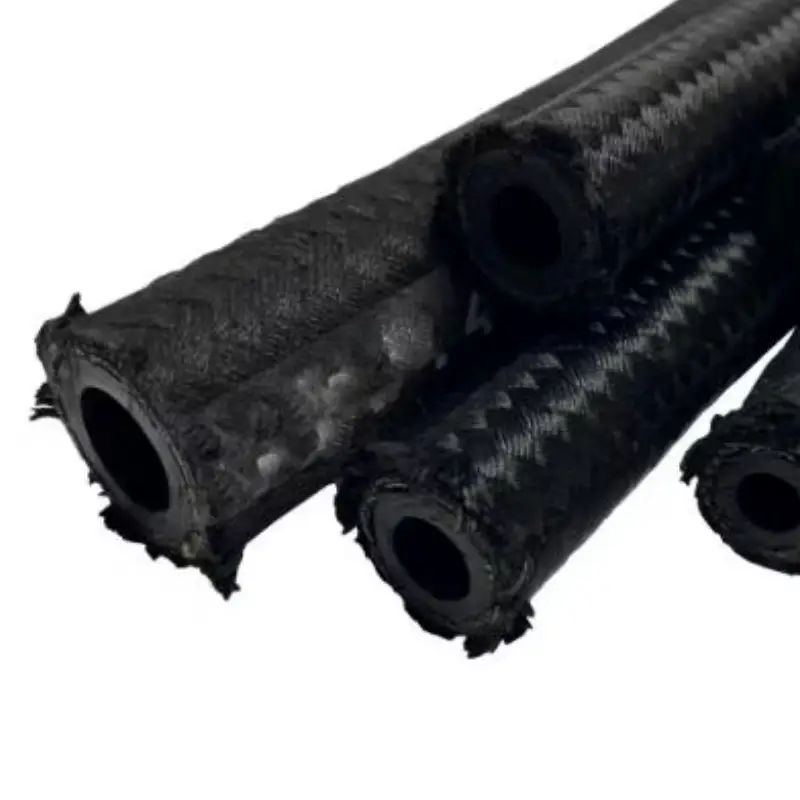

The hydraulic hose covered with braided textile can be used for hydraulic fluids conveyance, and you can use it for gasoline, diesel fuels, lubricating oil, air, and water. For hydraulic hose applications, please free to contact us now to consult where you can assemble this textile covered hydraulic hose pipe for your hydraulic system.

The textile braided hydraulic hose is also lightweight and flexible for the hydraulic hose assemblies, so you can plan your hydraulic hose routing at ease.

SAE 100R5 hydraulic hose can be recommended for power steering return lines, tilt lines, lube oil lines, and some other related machine tools.

No Need to Skive

sae 100r5 hose
SAE 100r5 hose

You don’t need to skive the outer cover of the SAE 100R5 hydraulic hose, due to the fabric textile cover. You don’t need to use the hydraulic hose skiving tool to shave the part of the hydraulic hose cover, you only need to attach this textile-covered hydraulic hose with hydraulic hose fittings together, then assemble it for the hydraulic system.

No skive hydraulic hose is designed well without the skiving step during the hydraulic hose installation. With the no-skive design, the 100R5 hydraulic hose’s textile cover or inner tube isn’t removed, which can speed up the hydraulic hose assemblies. Also without any additional hydraulic hose tools needed, it is helpful to save time for the hydraulic project.

What’s more, the no-skive hydraulic hose can be inserted into hydraulic hose fittings without any gap, making them locked well, to avoid some potential hydraulic hose leaks during its service life. So SAE 100R5 hydraulic hose could be a better selection for your hydraulic fluid conveyance.

Final Thoughts

If you have any other questions about the fabric-covered hydraulic hose, SAE 100R5 hydraulic hose, please don’t be hesitate to contact us at any time.
