Kingdaflex is the leading fire hose sleeve manufacturer in China, and we have been in the fire protection sleeve for 20+ years, with rich experience in the manufactured fire-rated sleeve to protect your hydraulic hose.
We own advanced manufacturing facilities to work out the premium fire hose sleeve for you to protect your hydraulic hose away from potential harm, even in a hostile environment.

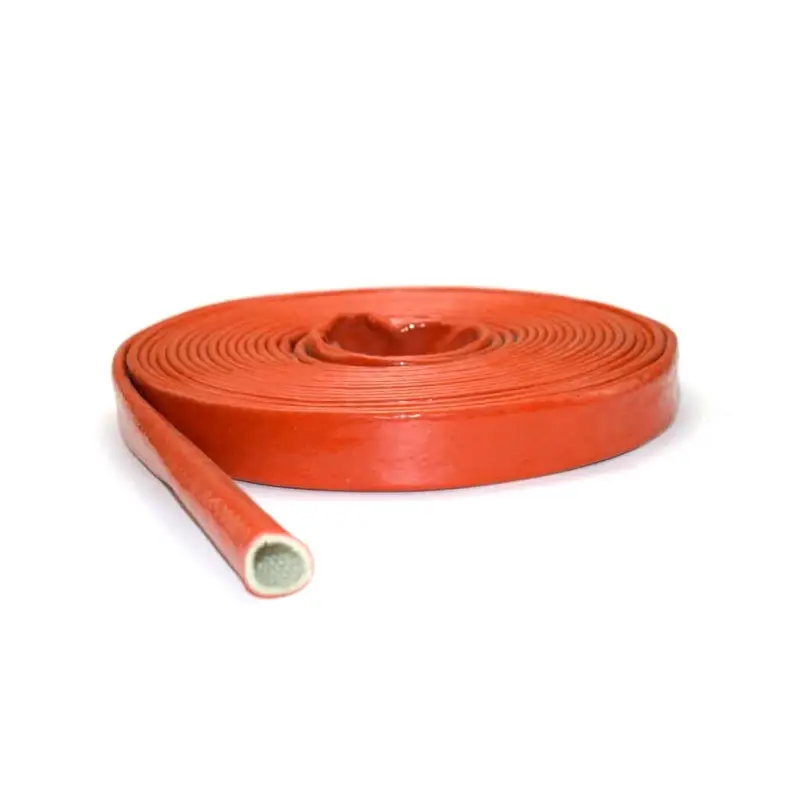

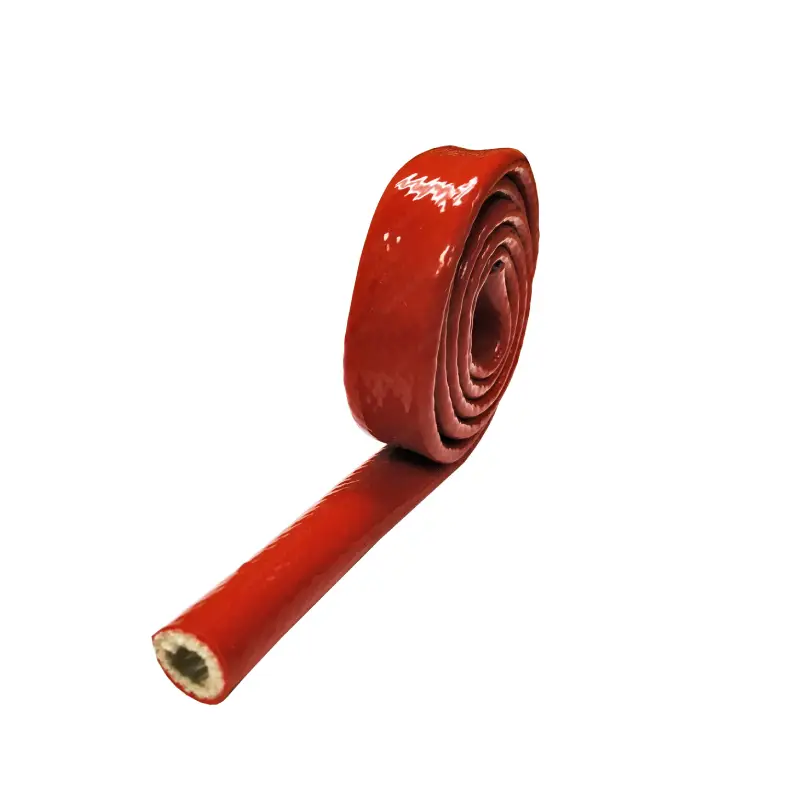

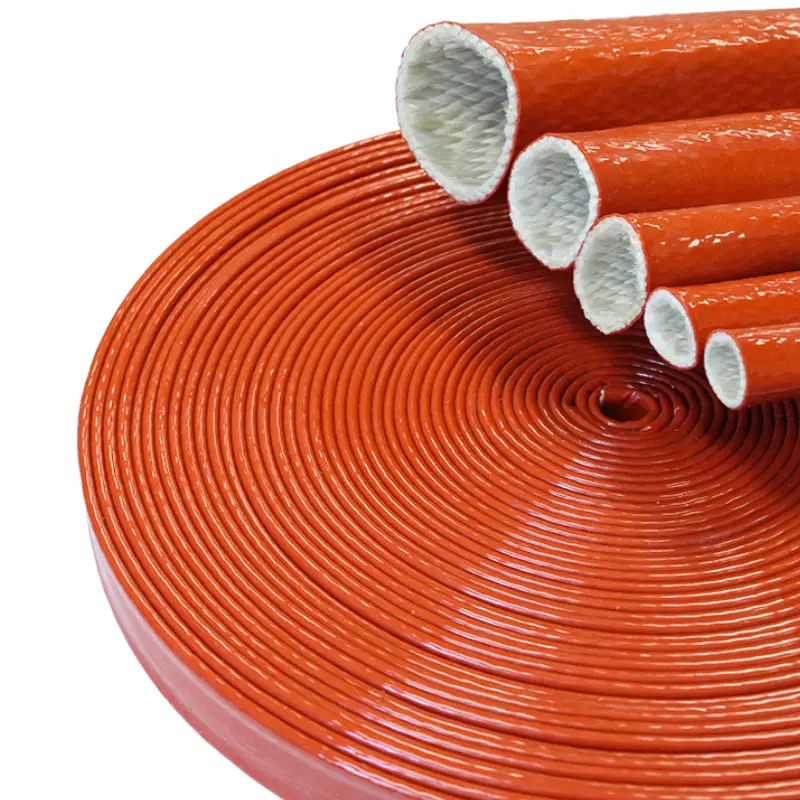

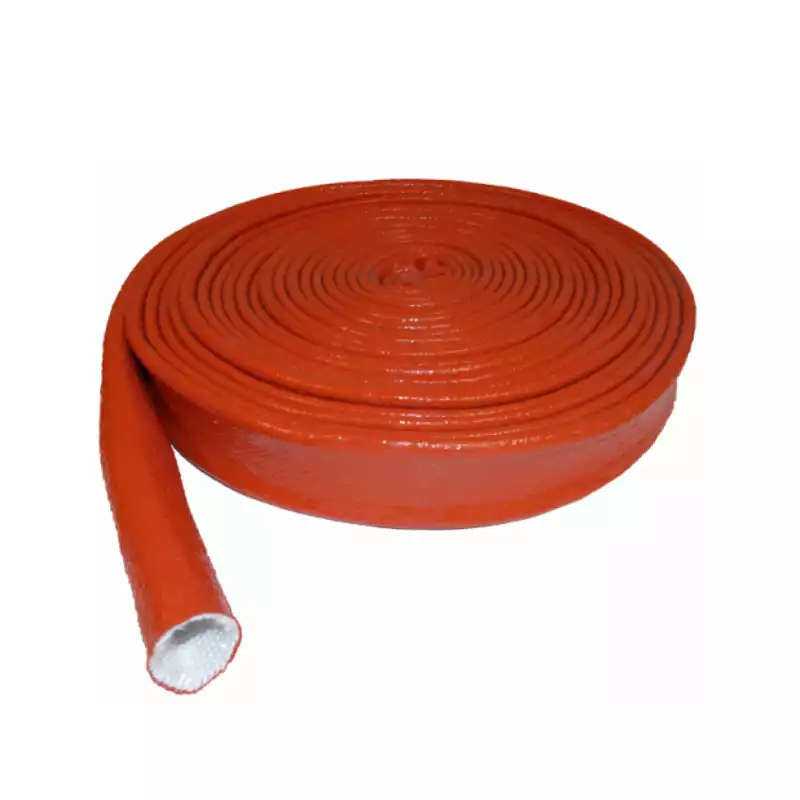

The glassfiber fireproof is fundamental to preventing the hydraulic hose away from damages in high temperatures. And the fire protection sleeve is designed with glassfiber fabric cloth coated with silicone rubber material. The fire resistant hose sleeve is basically important for hose protection.

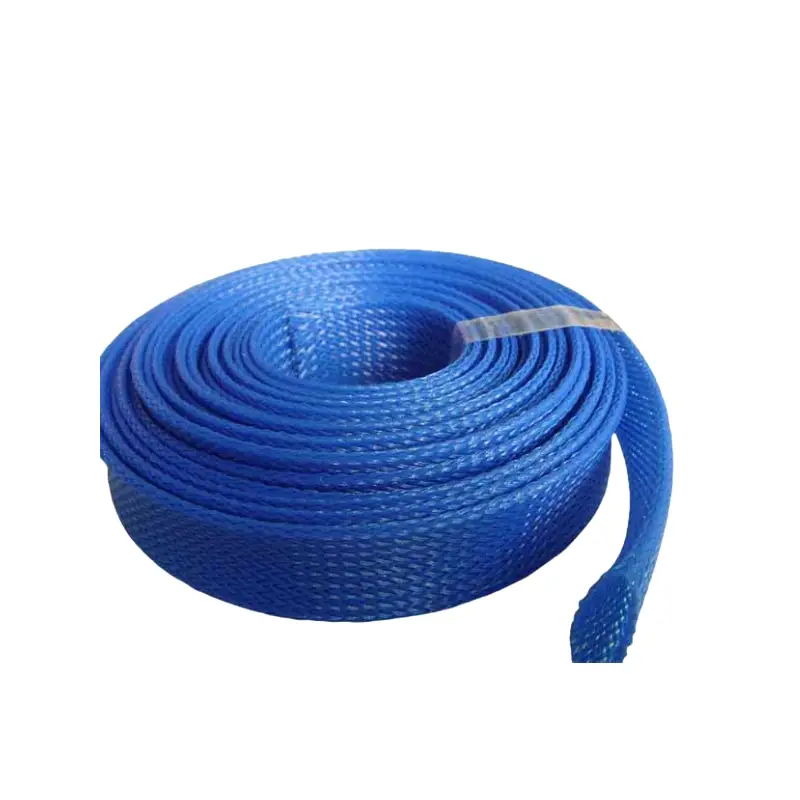

Hydraulic hose nylon protective sleeves are a must-have accessory for protecting your hydraulic hoses from abrasion and damage. As a hydraulic system plays a crucial role in various industrial and mobile applications, it’s essential to keep it in good condition.
By using a nylon protective sleeve, you can keep your hoses protected from sharp edges, hot metal surfaces, and any other abrasive elements that can cause damage. The sleeve is made of high-quality nylon that is both durable and flexible, making it an ideal solution for protecting your hoses.
The hydraulic hose sleeve protector is made of silicone covered material, super waterproof, moisture proof.

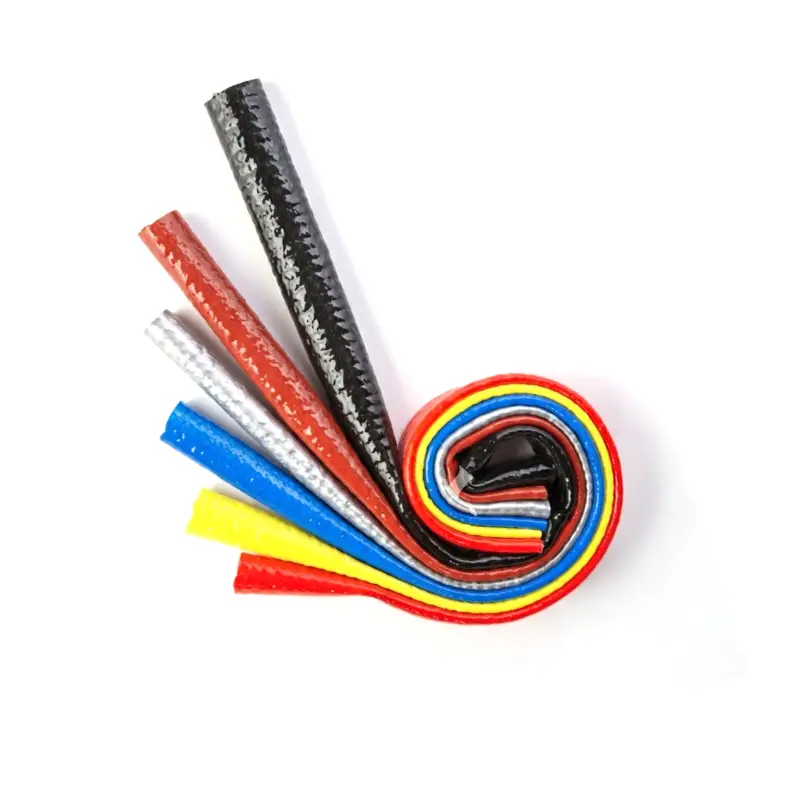

The fire protection sleeve can be designed with various colors, including trending black, white, yellow, orange, blue and etc.

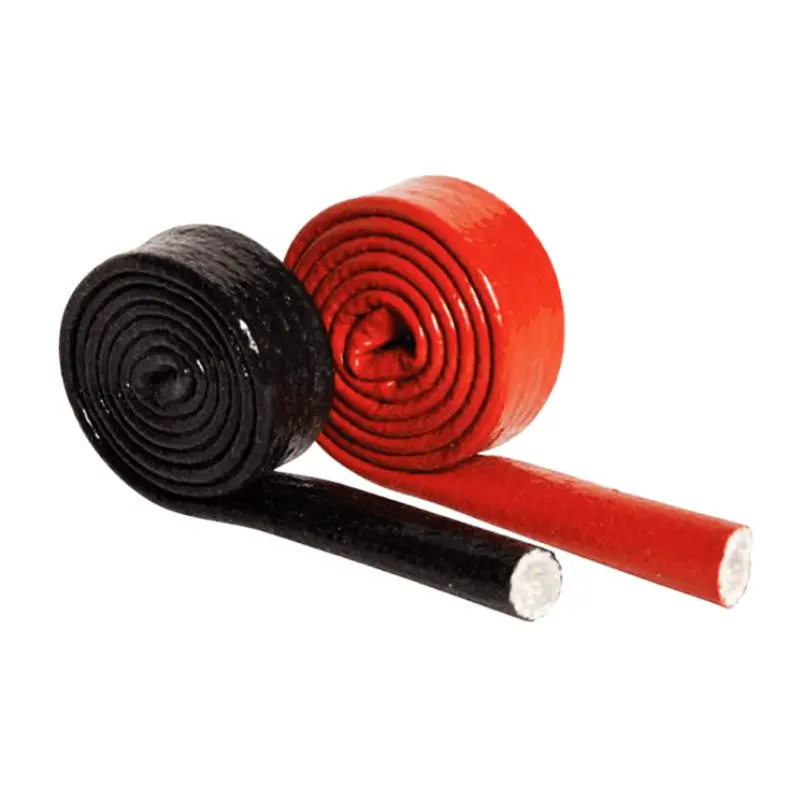

The fire sleeve is fabricated with fiberglass and coated with the thick silicone to give the resistance to the fire, heating, and high temperature.
Designed with thick 80mm Pyrojacket to give the huge protection to the whole hydraulic hose.
Inside | Wall Thickness | Tolerance | Roll Length | Inside | Wall Thickness | Tolerance | Roll Length | ||
(mm) | (inch) | (mm) | （mm） | （m） | (mm) | (inch) | (mm) | （mm） | （m） |
Φ6 | 1/4 | 1.5 | ±0.15 | 50 | Φ51 | 2 | 3 | ±0.35 | 25 |
| Φ8 | 5/16 | 1.5 | ±0.15 | 50 | Φ55 | 2 1/5 | 3.5 | ±0.35 | 25 |
Φ10 | 3/8 | 2 | ±0.20 | 25 | Φ57 | 2 1/4 | 3.5 | ±0.35 | 25 |
| Φ11 | 7/16 | 2 | ±0.20 | 25 | Φ60 | 2 3/8 | 3.5 | ±0.35 | 20 |
Φ13 | 1/2 | 2 | ±0.20 | 25 | Φ64 | 2 1/2 | 3.5 | ±0.35 | 20 |
| Φ16 | 5/8 | 2 | ±0.20 | 25 | Φ65 | 2 3/5 | 3.5 | ±0.35 | 20 |
Φ19 | 3/4 | 2 | ±0.20 | 25 | Φ70 | 2 3/4 | 3.5 | ±0.40 | 20 |
| Φ22 | 7/8 | 2 | ±0.20 | 25 | Φ76 | 3 | 4 | ±0.40 | 20 |
Φ25 | 1 | 2 | ±0.30 | 25 | Φ80 | 3 1/5 | 4 | ±0.40 | 20 |
| Φ29 | 1 1/8 | 2 | ±0.30 | 25 | Φ83 | 3 1/4 | 4 | ±0.40 | 20 |
Φ32 | 1 1/4 | 2 | ±0.30 | 25 | Φ85 | 3 3/8 | 4 | ±0.40 | 20 |
| Φ35 | 1 3/8 | 3 | ±0.30 | 25 | Φ89 | 3 1/2 | 4 | ±0.50 | 20 |
Φ38 | 1 1/2 | 3 | ±0.30 | 25 | Φ90 | 3 9/16 | 4 | ±0.50 | 20 |
| Φ40 | 1 3/5 | 3 | ±0.30 | 25 | Φ95 | 3 3/4 | 4 | ±0.50 | 20 |
Φ41 | 1 5/8 | 3 | ±0.30 | 25 | Φ102 | 4 | 5 | ±0.50 | 10 |
| Φ45 | 1 3/4 | 3 | ±0.30 | 25 | Φ110 | 4 1/3 | 5 | ±0.50 | 10 |
Φ48 | 1 7/8 | 3 | ±0.30 | 25 | Φ114 | 4.5 | 5 | ±0.50 | 10 |
This is the video showing more details about the our hydraulic hose protection sleeve, and you can feel free to contact us at any time if you have any questions.

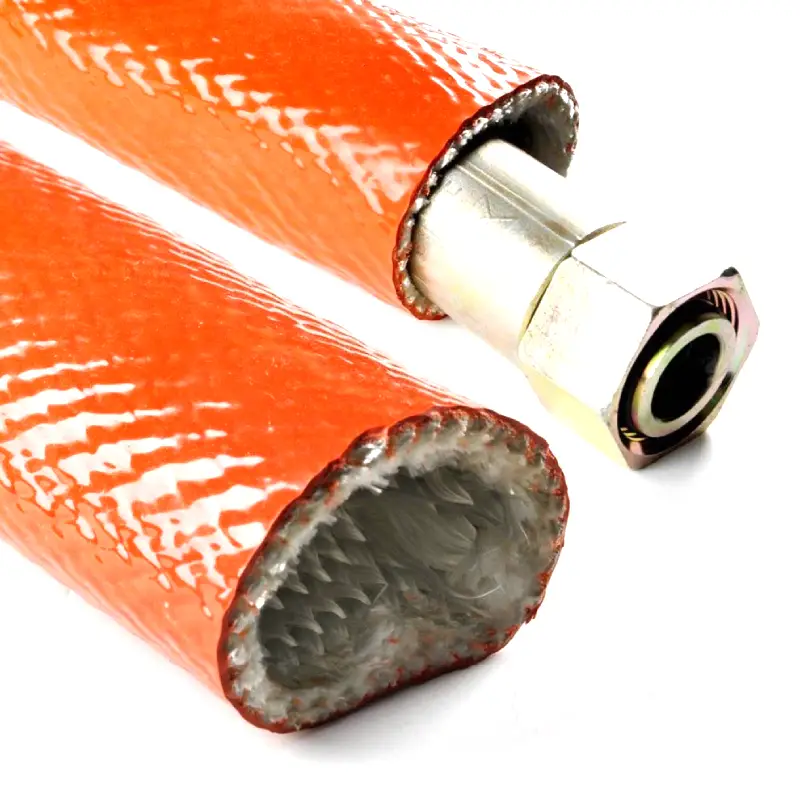

The fire protection sleeve has the premium elasticity, to give the excellent protection to hydraulic hose, and you only need to wrap the hydraulic hose using the top-rated fire sleeve protector. It can withstand intense radiant heat continuously during its service life.
The hydraulic hose protective sleeve can shed splash of molten steel, aluminum, and other metal liquid splash. It is basically important for hydraulic hose protection. The fireproof sleeve is one of the greatest selection to protect your hydraulic hoses away from the potential damages for various industrial occasions.
The fire protection sleeve can be applied for various working conditions, such as steel manufacturer, the metallurgical industry, the well-digging industry, and heavy-duty machinery that needs lots of hydraulic hoses. The fire resistant hose sleeve has a wide applications as follows:
The fire protection sleeve can be used in the metallurgical industry, where has the very high temperature. The top-rated silicone coated fire protection sleeve can prevent the metal splash.
The artificial intelligence industry field also needs the fire sleeve protector to keep the hydraulic hose safe during its service life. High temperature fire sleeves can provide wire harness protection for the AI device.
Fire sleeves also play an increasingly important role in the hydraulic hose protection for the heavy-duty machinery, such as drilling machinery, digging machinery, agricultural machinery, mining machinery and etc.
The fire protection hose is a flexible sleeve that is designed for hydraulic hose protection, when it is used under the ambient working conditions.
The fire protection hose is made of the silicone coated rubber material, and also premium glassfiber, with the strong ability to protect the hydraulic hose safe in a good condition during the shelf life.
Of course, you can choose your desired color. Here are some trending colors to widen your options, such as black, white, blue, yellow, orange and etc. The color can be customized to meet your desire.
Yes, you can get your desired length here in our hydraulic hose manufacturer, and we can provide 40m, 50m, 80m, 100m and etc.
A protective sleeve for hydraulic hoses is the barrier that can protect rubber hose against hose bursts or leakage in the working conditions. The burst protection sleeve for hydraulic hoses can protect natural hydraulic hoses against abrasion. You can get the hydraulic hose burst protection sleeve for your hydraulic system, to expand hydraulic hose shelf life.
We can provide the packaging method to meet your requirement, and here are some trending packaging methods to pack the fire sleeve hose.
Yes, the fire sleeve consists of fire sleeve coated with rubber silicone material. These materials are insulated, so that you can use the fire sleeve protector to protect the hydraulic hoses, cables, wires, tubes and pipes used for any industries where exist electricity.
The fire retardant sleeve is made of silicon coated glassfiber fabric material, used to protect your cables, tubes, wires, tubes from the abusive treatment and hazardous damages.
The fireproof fiberglass fire sleeve is the strong method to protect the hoses that can be used for a very long.
The fire resistant sleeving is manufactured with the premium silicone rubber coated high temperature glassfiber, that can withstand heating working conditions to ensure that machinery powered by the hydraulic hose transferred can work as normal.
The fire resistant sleeving can add a protection layer to prevent heating damages to the heavy-duty machinery.
And the aeroquip fire sleeve is really nice
If you have any questions about the fire protection sleeve, and please feel free to contact us at any time if you want.
If you are looking for a professional hydraulic hose & industrial hose manufacturer in China, Kingdaflex will be your best choice. We provide better hydraulic hose wholesale and the best solution to help your hydraulic projects.
