Spiral vs Braided Hydraulic Hose for Construction Machinery

You want your construction machines to work well. Picking a braided or Spiral Hydraulic Hose depends on how much pressure your equipment needs. It also depends on how flexible the hose must be and what hydraulic job you need to do. Kingdaflex is a trusted maker of hydraulic hose solutions for big machines. Using the right hose for your machine keeps your work safe. It also makes your work efficient and saves money.

Braided Hydraulic Hose Overview

Construction and Flexibility

A braided hydraulic hose has one or two layers of strong steel wires. The wires are woven together in a crisscross way. This makes the hose strong and also lets it bend easily. You can bend this hose without much effort. This helps when you need to fit it into small spaces on machines. The hose is flexible, so it works well for machines that move a lot. It is also good for machines with tricky paths for hoses.

Here is a quick comparison to help you see the difference:

Braided hoses are easier to put in small spaces. This makes them a great pick for many construction machines.

Pressure Range and Applications

A braided hydraulic hose works well for jobs with medium or high pressure. Most construction work uses these hoses for pressures from 2,500 to 5,000 psi. You can use them on excavators, loaders, and other big machines. These hoses are good when you need both strength and movement. They help your machine work well and safely.

Kingdaflex Braided Hydraulic Hose Features

If you pick Kingdaflex, you get a hose that meets tough rules from around the world. Kingdaflex braided hoses follow SAE 100R1A, SAE 100R2A, and DIN EN853 codes. This means you can trust the hose to be safe and last a long time.

Kingdaflex uses good materials and smart technology. This gives you a hose that lasts longer and keeps your machines working. If your project needs something special, you can get custom hoses too.

Spiral Hydraulic Hose in Construction

Structure and Rigidity

A spiral hydraulic hose is built in a special way. It has four or six steel wire layers. These wires wrap around the hose in a spiral shape. This makes the spiral wound hydraulic hose very strong. It can handle tough jobs and high pressure. The spiral layers make the hose stiffer than a braided hose. It is harder to bend or fit into small spaces. The stiffness helps the hose keep its shape when under heavy weight or sudden pressure.

Here is a table to help you compare spiral and braided hydraulic hoses:

You should pick a spiral wound hydraulic hose if you need the best burst resistance and pressure holding.

High-Pressure Performance

A spiral hydraulic hose works great for high pressure jobs. You can use this hose for systems up to 6,000 PSI. The spiral wound hydraulic hose does not burst easily. It can handle sudden jumps in pressure. This makes it good for big machines like excavators and cranes. The hose can take high pressure without breaking. You can feel safe knowing your hydraulic system will not burst.

Kingdaflex Spiral Hydraulic Hose Advantages

If you choose a Kingdaflex spiral hydraulic hose, you get quality and strength. Kingdaflex hoses last through 1 million impulse cycles. This is five times more than the EN857 2SC standard. The hose works well in both hot and cold weather. The special materials make the hose wear out half as fast as normal hoses. You also get 20% more heat resistance. These things make Kingdaflex spiral wound hydraulic hoses a smart pick for tough construction work. You can trust your hydraulic hose to work well and keep you safe.

Tip: For high-pressure jobs and the best burst resistance, always think about using a spiral hydraulic hose from Kingdaflex.

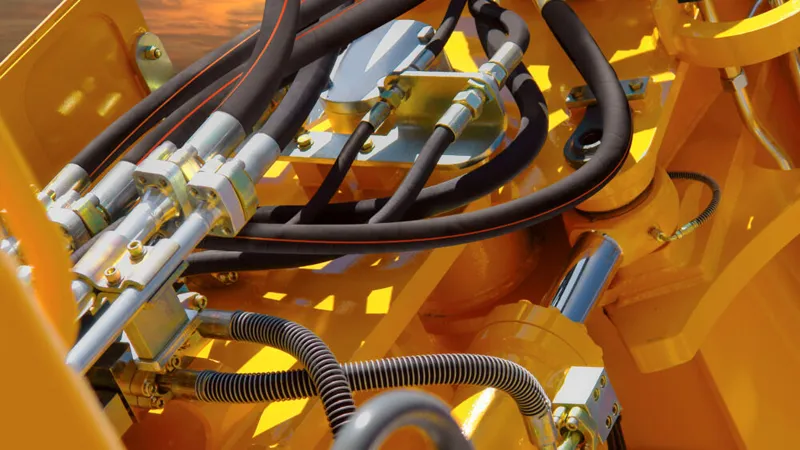

Spiral vs Braided Hydraulic Hose Comparison

Flexibility and Routing

You should think about how flexible a hose is. Braided hoses bend more than spiral hoses. You can move a braided hydraulic hose around corners easily. This helps you put it in small spaces on machines. Braided hoses work well when machines have lots of moving parts or tight spots.

• Braided hoses bend better, so they fit in small places and tricky machine parts.

• You can move braided hoses around easier, which helps in tight equipment.

• Spiral hoses do not bend as much because of how they are made. They need more room and do not fit well in small spaces.

• Braided hoses are simple to put in because you can move them through tight areas.

• Spiral hoses need careful work and planning since they do not bend much.

If you want to save time putting in a hose, pick a braided hose. You can finish faster and with less hard work.

Pressure Handling and Safety

You must pick a hose that matches your system’s pressure. Spiral hoses can take more pressure than braided hoses. This means spiral hoses work for very high pressure and sudden jumps. You should use spiral hoses for tough jobs and when pressure changes a lot. These hoses last longer and do not wear out fast.

• Spiral hoses are made for very high pressure, so they are safer for big machines.

• They handle shaking and sudden pressure better than braided hoses.

• Braided hoses are good for medium pressure but may not work for big pressure jumps.

• Spiral hoses are less likely to break when pressure changes quickly, so your machines stay safe.

When you need a hose for high pressure, spiral hoses help you feel safe. You can trust them to keep your machines working.

Application Suitability for Construction Machinery

You need to pick the right hose for your machine and job. The table below shows which hose is best for different needs:

• Spiral hoses are best for big construction machines, high-pressure systems, and hard jobs.

• Braided hoses work better for moving machines, cars, and lighter jobs.

You should also think about price. Braided hoses cost less for normal jobs without high pressure. Spiral hoses cost more, but they work better for tough jobs. You might pay more at first, but you save money by stopping breakdowns and repairs.

Note: Many Kingdaflex customers have seen these good results in real jobs. For example, William, who buys for a mine, said, “When replacing hydraulic hoses on mining equipment, Kingdaflex delivers durable solutions, quick turnaround times, and expert support to minimize downtime and maximize efficiency.” Luca, a marketing director, said, “The custom hydraulic hose we ordered exceeded our expectations! The quality is outstanding, and the team was incredibly helpful to achieve our design.”

You can see that picking the right hose really matters. You keep your machines safe, save time, and get the most for your money.

Choosing the Right Hydraulic Hose for Construction Machinery

Risks of Incorrect Selection

If you pick the wrong hose, you can have big problems. The wrong hydraulic hose can make your machine break down. Here are some things that can happen:

• Hoses wear out very fast

• Leaks start in the system

• The whole system can stop working

• Workers can get hurt

• Machines stop working when you do not expect it

If the hose does not match the fluid or the place you use it, it can break. For example, if you use a hose that is not made for hot places, it can get bigger or crack. This can make leaks or even bursts. In construction, using the wrong hose often makes machines stop working. If you use the wrong hose, it can break again and again. This means your machines stop and you lose time and money.

Matching Hose Type to Application

You need to pick a hose that fits your machine and job. Here are the main things to check:

1. Make sure the hose works with your hydraulic fluid.

2. Think about where you use the hose, like sun and heat.

3. Check if the hose can take the pressure your machine uses.

If you do not check these things, your hose can break or burst. Always pick a hose that fits your machine. For example, use a spiral hose for high-pressure jobs. Use a braided hose for machines that need to bend and move a lot. This helps your machines last longer and keeps people safe.

Kingdaflex Support and Custom Solutions

Kingdaflex helps you pick the right hydraulic hose for your machines. You can get hoses made just for your needs. Here are some ways Kingdaflex can change your hose:

Kingdaflex also gives you strong help. They can fix hoses at your work site. Skilled workers come to you and fix hoses fast. This means your machines do not stop for long. You can call for help any time, day or night. These services save you money and time because you do not have to move your machines.

Kingdaflex also teaches you how to use hoses the right way. You learn how to cut, fit, and put in hoses. You get tips on how to put hoses in the right place and test them. Checking and cleaning hoses helps you find problems early. You also learn how to store hoses and change broken ones. Safety lessons help your team stay safe.

Tip: If you are not sure which hose to use, ask for help. Kingdaflex experts can help you pick the right hose and stop mistakes.

You need to pick a hydraulic hose that fits your machine. Think about how much pressure your machine uses and how much the hose needs to bend. Spiral hoses are good for jobs with high pressure. Braided wire hoses are better when you need the hose to bend and move easily. Look at the table to see how they are different:

Kingdaflex checks their hoses with special tests. They make sure the hoses are safe and last a long time for construction work.
